Products
Autoclave

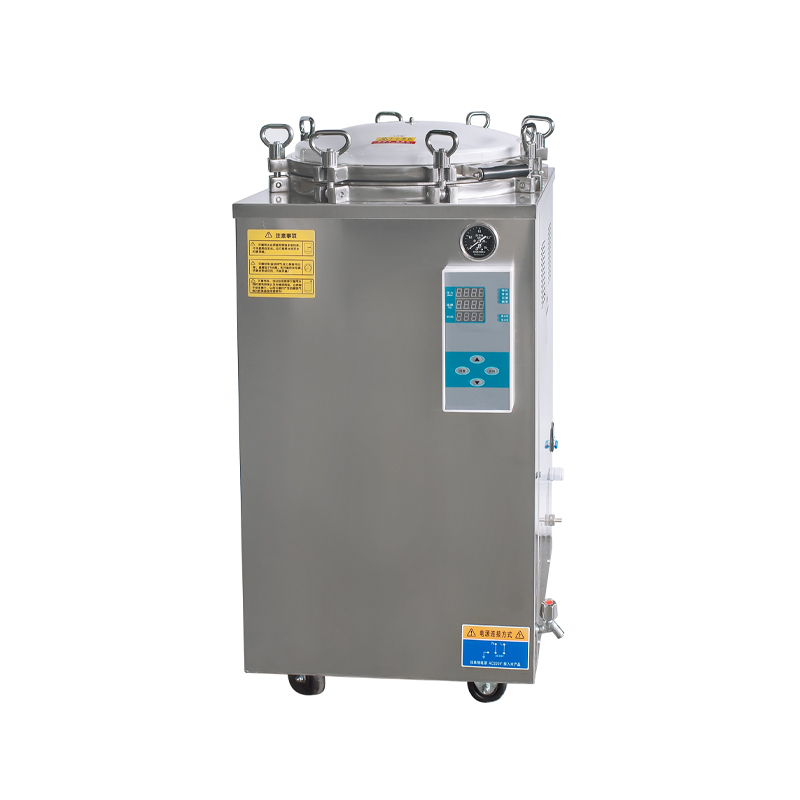

The Vertical Steam Autoclave (35–150L) offers dependable sterilization with its robust stainless steel construction and precise digital control system. Designed for laboratories and medical facilities, it features automatic steam exhaust and safety mechanisms that ensure effective sterilization while conserving energy.
Product Details
The Vertical Steam Autoclave (35–150L) offers dependable sterilization with its robust stainless steel construction and precise digital control system. Designed for laboratories and medical facilities, it features automatic steam exhaust and safety mechanisms that ensure effective sterilization while conserving energy.
Highlights:
Durable stainless steel body and chamber

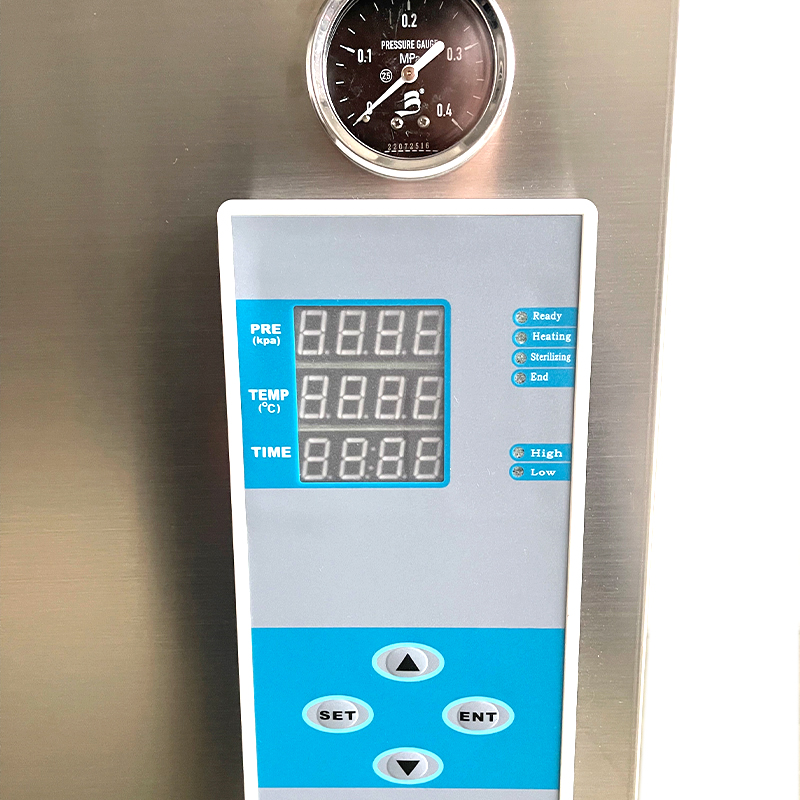

Clear digital display of real-time working status
Automatic release of cool air and steam after sterilization
Energy-efficient performance with reliable sterilizing results

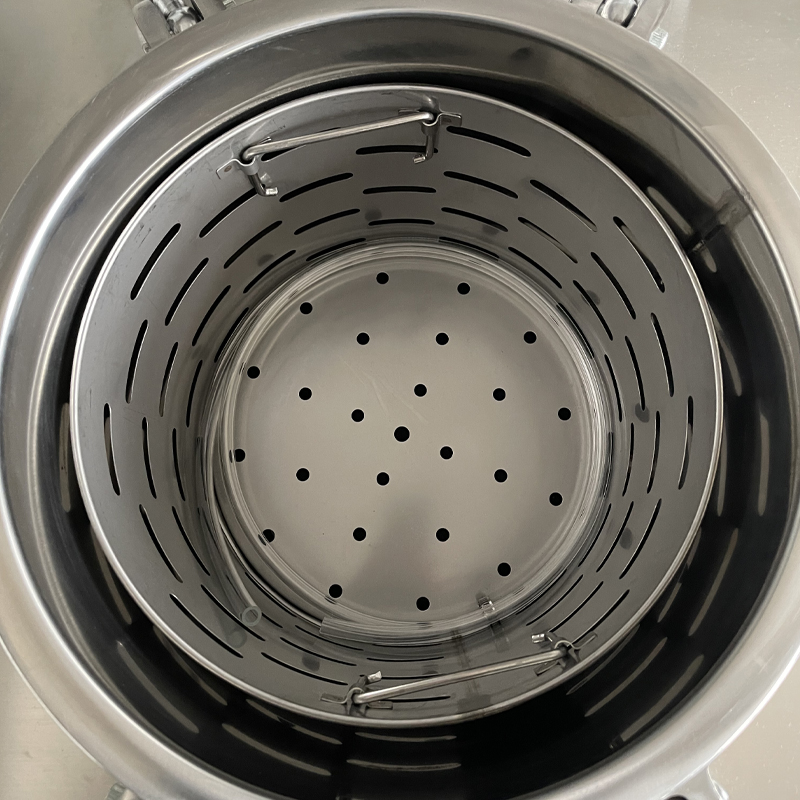

Supplied with two stainless steel sterilizing baskets
Automatic shut-off and alarm for operator safety
This Vertical Steam Autoclave is widely used in microbiology labs, research centers, hospitals, and universities for sterilizing medical tools, laboratory glassware, fabrics, and media.
Technical Data：
Model technical data | WLS-35LD(automatic) | WLS-50LD(automatic) | WLS-75LD(automatic) | WLS-100LD(automatic) | WLS-120LD | WLS-150LD | |||||
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm | 120L(φ480×660)mm | 150L(φ510×740)mm | |||||
working pressure | 0.22MPa | ||||||||||
Working temperature | 134℃ | ||||||||||
Max working pressure | 0.23 Mpa | ||||||||||
Heat average | ≤±1℃ | ||||||||||
Timer | 0～99min or 0～99hour59min | ||||||||||
Adjustment of temperature | 105～134℃ | ||||||||||
Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | 6Kw/AC220V.50Hz | 6Kw/AC220V.50Hz | ||||||
Overall dimension | 470×450×840(mm) | 520×500×970(mm) | 550×530×990(mm) | 580×560×1060(mm) | 630×610×1130(mm) | 660×640×1130(mm) | |||||
Transport dimension | 540×540×970(mm) | 580×580×1090(mm) | 610×610×1110(mm) | 640×640×1170(mm) | 690×690×1240(mm) | 730×730×1240(mm) | |||||
G.W/N.W | 61Kg/ 46Kg | 73Kg/56Kg | 87Kg/67Kg | 95Kg/73Kg | 116Kg/ 101Kg | 130Kg/111Kg | |||||
