Products
Autoclave

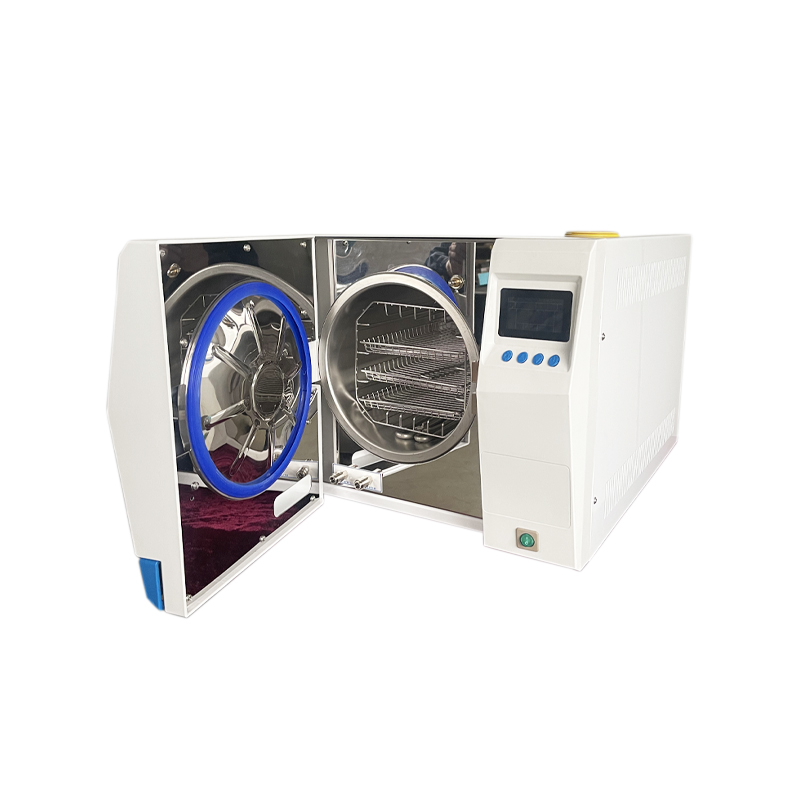

The WTM-XD Series Table Top Steam Sterilizer combines speed, safety, and convenience in one compact unit. With a maximum temperature of 134°C, it completes sterilization cycles in just 4–6 minutes, significantly reducing instrument turnaround time. Its digital display with touch control keys ensures easy operation and accurate monitoring throughout the process.
Product Details
The WTM-XD Series Table Top Steam Sterilizer combines speed, safety, and convenience in one compact unit. With a maximum temperature of 134°C, it completes sterilization cycles in just 4–6 minutes, significantly reducing instrument turnaround time. Its digital display with touch control keys ensures easy operation and accurate monitoring throughout the process.
Equipped with three preset sterilization programs and a customizable cycle, it adapts to different application needs in laboratories, clinics, and dental practices. Safety is guaranteed with a door lock system, water shortage protection, and an automatic air exhaust function. The stainless steel chamber and plates ensure durability and hygiene, while the integrated drying function keeps instruments ready for immediate use.
Key Features:
Rapid sterilization in just 4 - 6 minutes.
Digital display & touch control for simple operation.
Three preset programs + user-defined cycle for flexibility.
Automatic operation: water filling, heating, sterilization, drying, exhaust.
Steam-water circulation system - no external steam release.

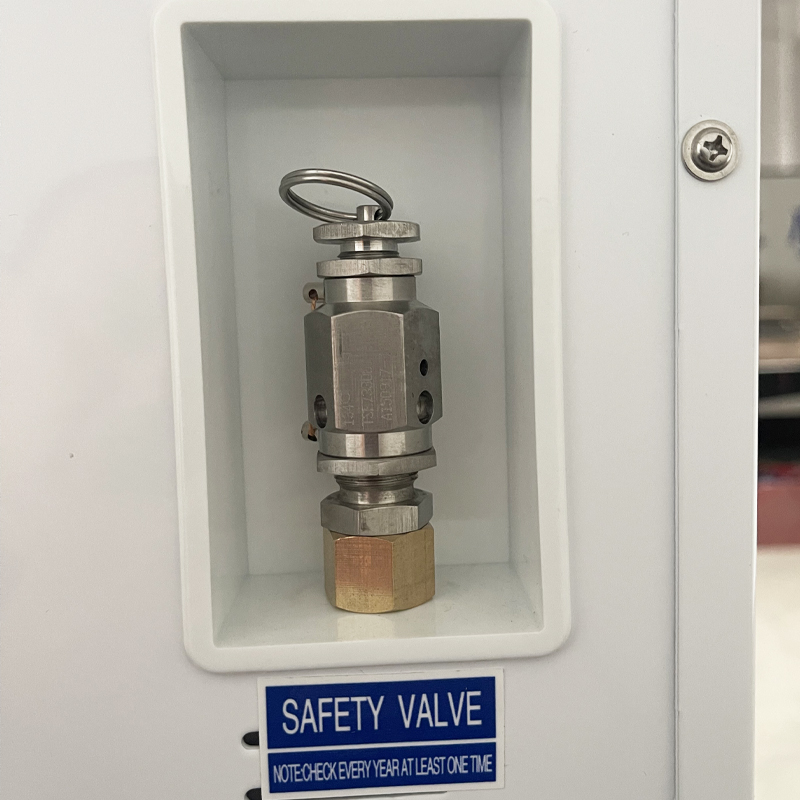

Safety protections: door lock, water shortage shutoff, overheat prevention.
Automatic air exhaust ensures effective sterilization.

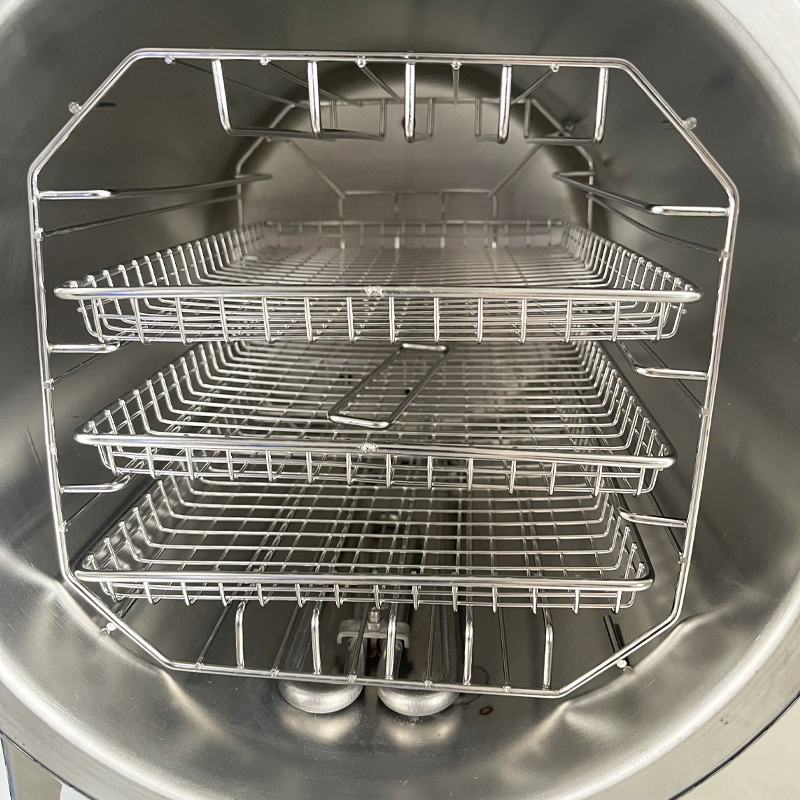

Durable stainless steel chamber with three sterilizing plates.
Drying function for immediate instrument use.
Auto shut-off with alarm after each cycle.
Technical data:
Model | WTM-XD20D | WTM-XD24D |
Sterilizing chamber volume | 20L（φ250×420 mm） | 24L（φ250×470 mm） |
Maximum working pressure | 0.22Mpa | |
Maximum working temperature | 134℃ | |
Adjustment of temperature | 105-134℃ | |
Timer | 0-99min | |
Chamber temperature equal | ≤ ± 1℃ | |
Source power | 1.5KW / AC220V 50Hz | |
Sterilizing plate | 340×200×30 mm (3 piece) | 400×200×30 mm (3 piece) |
Dimension | 480×700×455mm | 480×700×455mm |
Package dimension | 790×580×580 mm | 800×580×580 mm |
G. W/N.W | 55/47 kg | 58/53 kg |
