Products
Autoclave

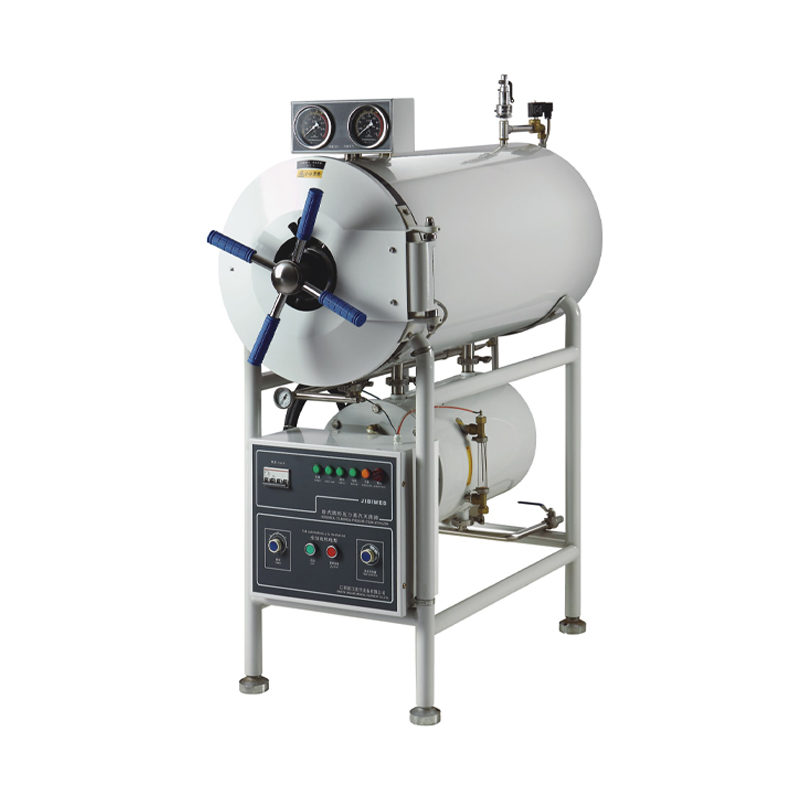

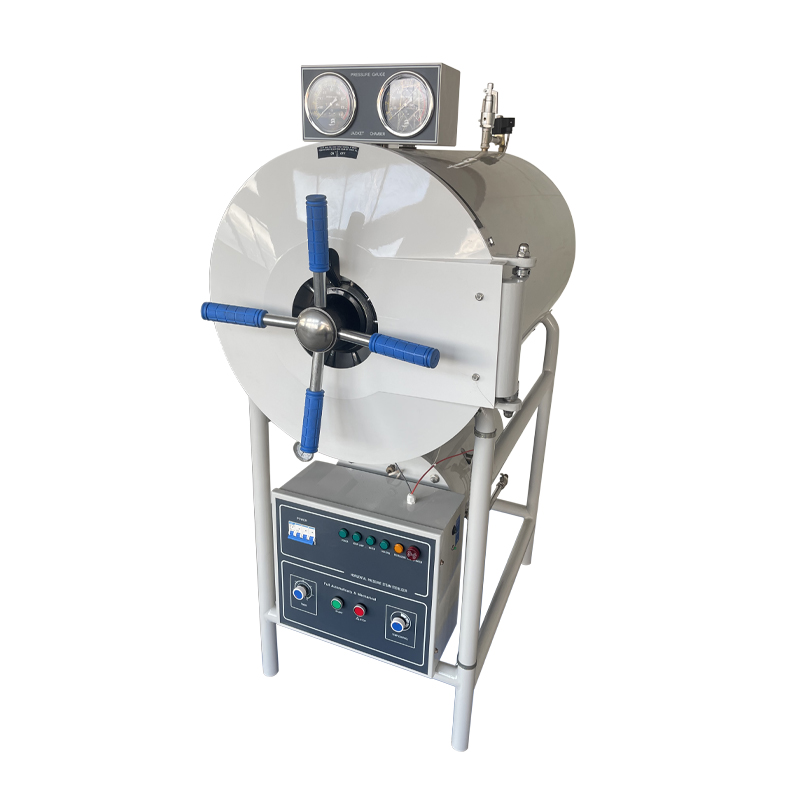

The Welso WYDA Horizontal Cylindrical Pressure Steam Autoclave offers advanced automatic sterilization with multiple safety protections. Equipped with a drying function for medical dressings, stainless steel chamber, and automatic cut-off power in case of water leakage, it guarantees both efficiency and operator safety.
Product Details

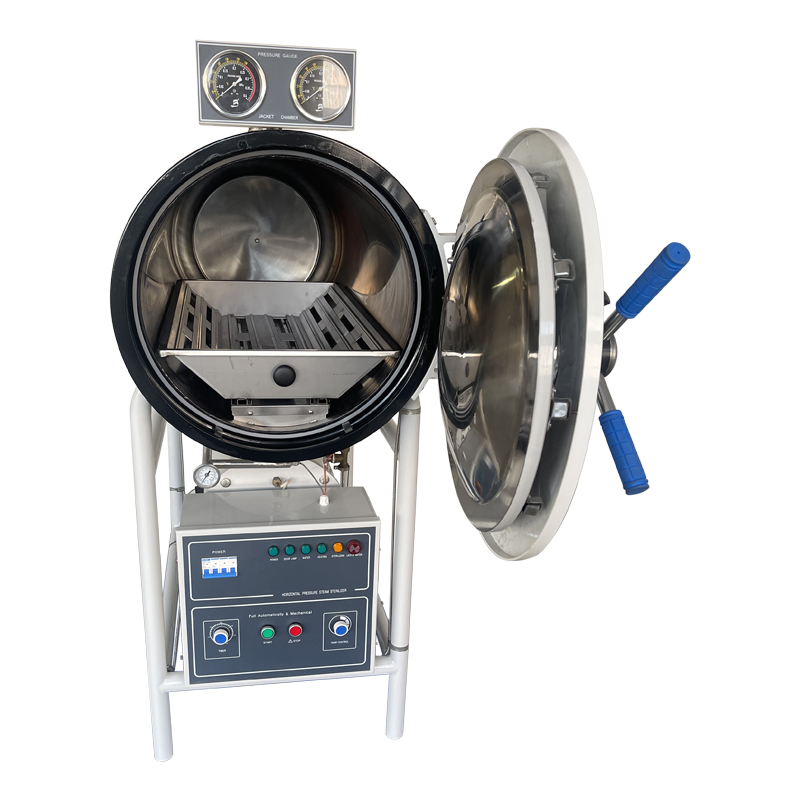

The Welso WYDA Horizontal Cylindrical Pressure Steam Autoclave offers advanced automatic sterilization with multiple safety protections. Equipped with a drying function for medical dressings, stainless steel chamber, and automatic cut-off power in case of water leakage, it guarantees both efficiency and operator safety. The door is secured with a pressure interlock, preventing opening under unsafe conditions. This model is widely used in hospitals, scientific research, and laboratories to sterilize instruments, fabrics, glassware, and culture media.
Features
Fully automated sterilization process ensures reliable results with minimal operator effort.
Integrated drying capability, perfectly suited for dressings and other medical materials.
Multiple safety features including over-pressure and over-temperature protection.
Secure door lock system prevents access until pressure inside is safely released.
Safety valve automatically discharges steam once internal pressure surpasses 0.24 MPa.
Automatic power-off and alarm function triggered by water leakage.
Robust stainless-steel chamber delivers long-lasting performance and easy maintenance.
Technical data:
Technical Data | WYDA150 | WYDA200 | WYDA280 | WYDA400 | WYDA500 | ||||
Sterilizing Chamber Volume | 150L φ440×1000mm | 200L φ515×1000mm | 280L φ600×1000mm | 400L Φ700×1100mm | 500L Φ700×1300mm | ||||
Working Pressure | 0.22MPa | ||||||||
Working Temperature | 134℃ | ||||||||
Adjustment Of Temperature | 105℃ - 134℃ | ||||||||
Time Of Sterilization | 0-60 min | ||||||||
Time Of Drying | 0-60 min | ||||||||
Heat Average | ≤±2℃ | ||||||||
Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz | ||||
.Dimension | 1350×600×1520 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 | ||||
Transport Dimension | 1560×750×1850 | 1560×820×1930 | 1680×920×1950 | 1600×1050×2050 | 1850×1050×2050 | ||||
G.w/N.w | 320/278 KG | 378/318 KG | 465/391 KG | 530/456 KG | 627/540 KG | ||||
