Products
Autoclave

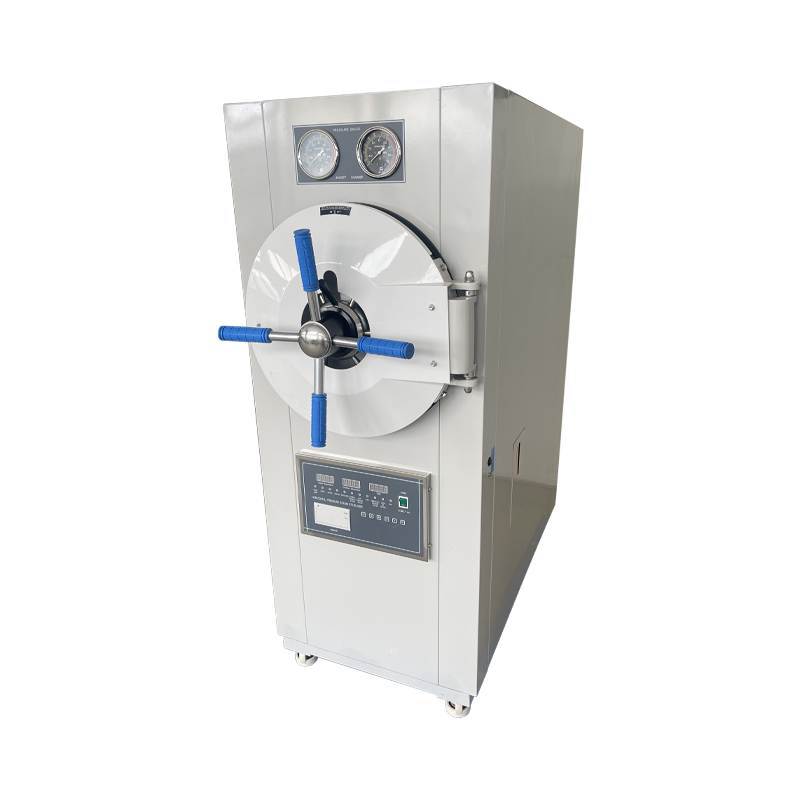

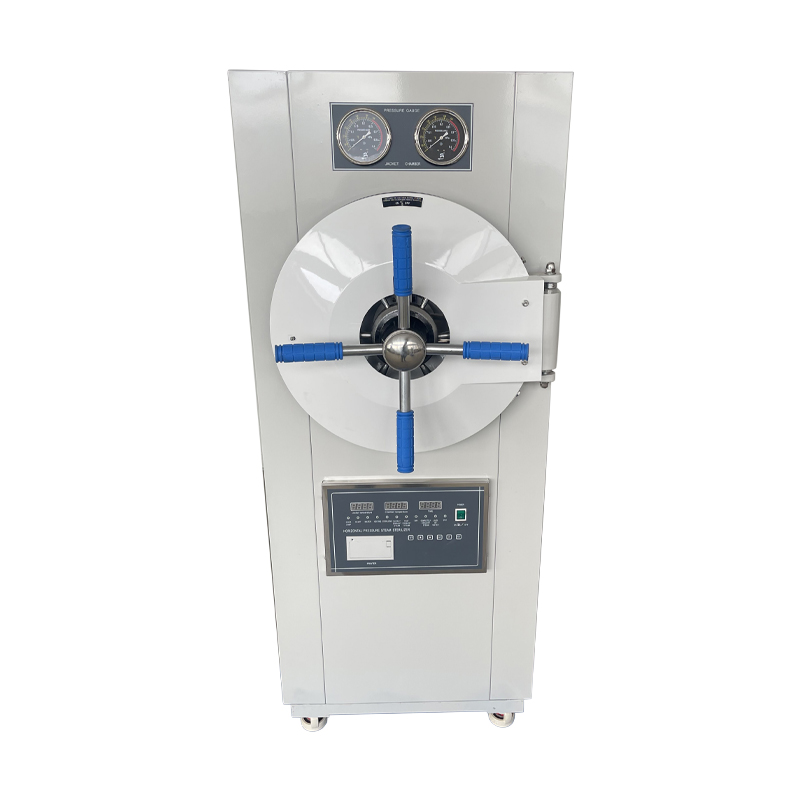

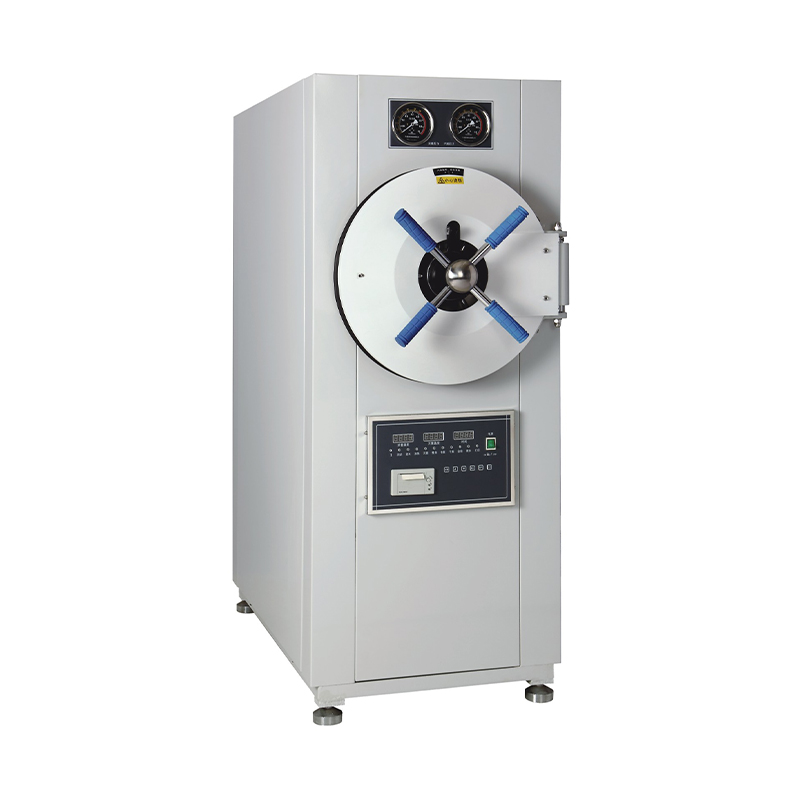

The Welso WYDB Horizontal Cylindrical Pressure Steam Autoclave provides efficient sterilization for surgical instruments, culture media, fabric, and glassware.
Product Details
The Welso WYDB Horizontal Cylindrical Pressure Steam Autoclave provides efficient sterilization for surgical instruments, culture media, fabric, and glassware. Its advanced microcomputer control system automates the sterilizing cycle for reliable results with minimal operator effort. With drying function, automatic safety protections, and pressure interlock, it ensures both performance and operator safety. A stainless-steel chamber delivers long service life, making it a dependable choice for hospitals, laboratories, and research institutes.
Features:

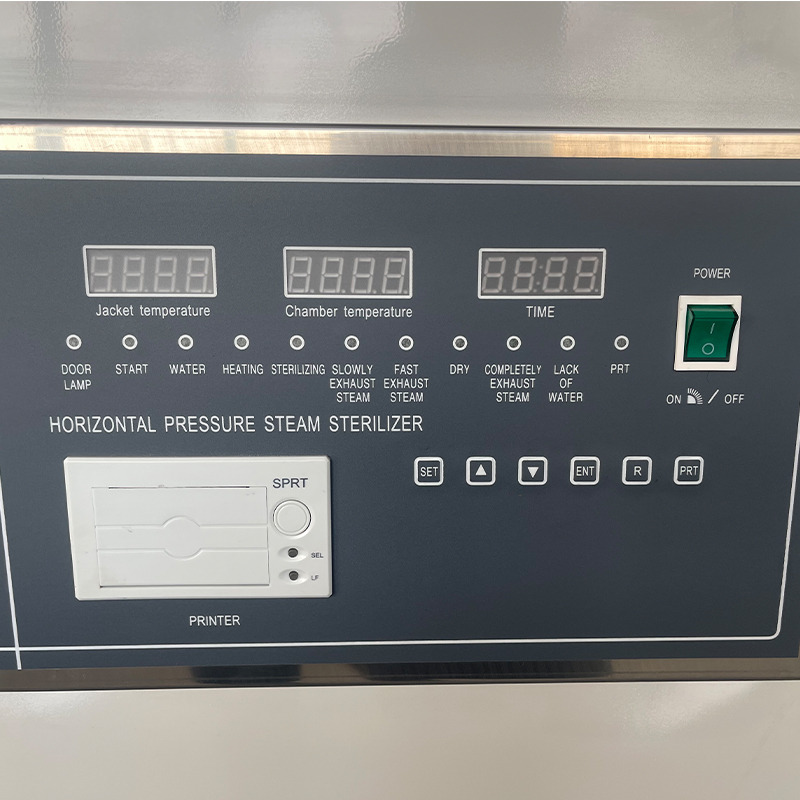

Microcomputer-controlled sterilization process.
Drying function suitable for medical dressings.
Comprehensive safety protections against overheating and over-pressure.
Door remains locked until pressure is safely reduced.
Automatic safety valve exhausts excess steam.
Automatic alarm and power-off in case of water shortage.

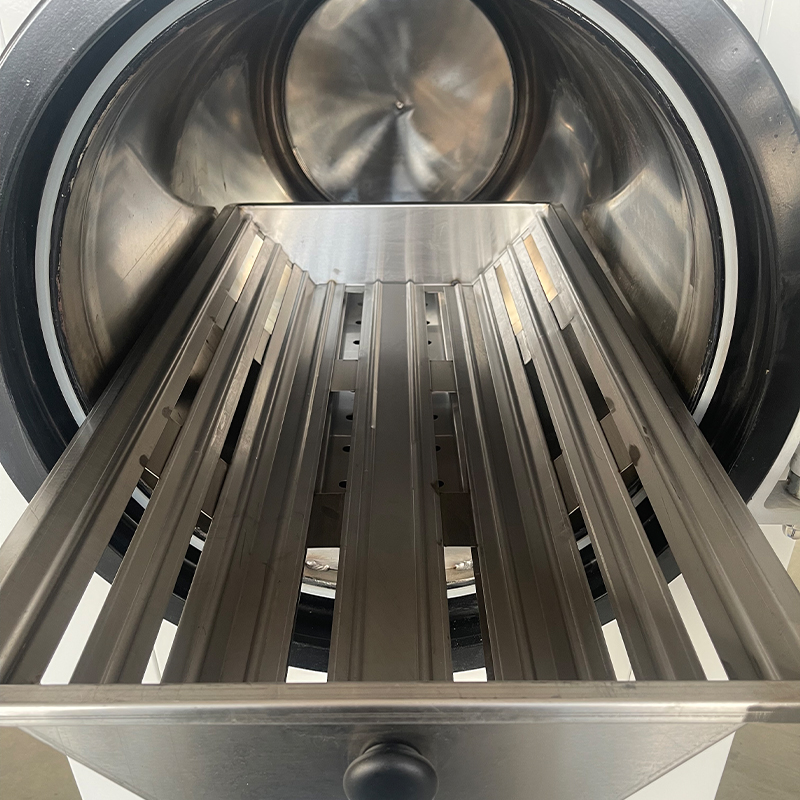

Durable stainless-steel chamber for long-term use.
Technical data：
Technical Data | WYDB150 | WYDB200 | WYDB280 |
Sterilizing Chamber Volume | 150L(φ440×1000mm) | 200L(φ515×1000mm) | 280L(φ600×1000mm) |
Working Pressure | 0.22 MPa | ||
Working Temperature | 134℃ | ||
Adjustment Of Temperature | 105℃ - 134℃ | ||
Time Of Sterilization | 0-99 min | ||
Time Of Drying | 0-99 min | ||
Heat Average | ≤± 2℃ | ||
Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz |
Dimension | 1400×650×1590 | 1400×750×1700 | 1540×850×1790 |
Transport Dimension | 1560×860×1820 | 1560×910×1880 | 1680×1060×2050 |
G.w/N.w | 422/368 KG | 469/404 KG | 577/492 KG |
