Dry Bath Incubator

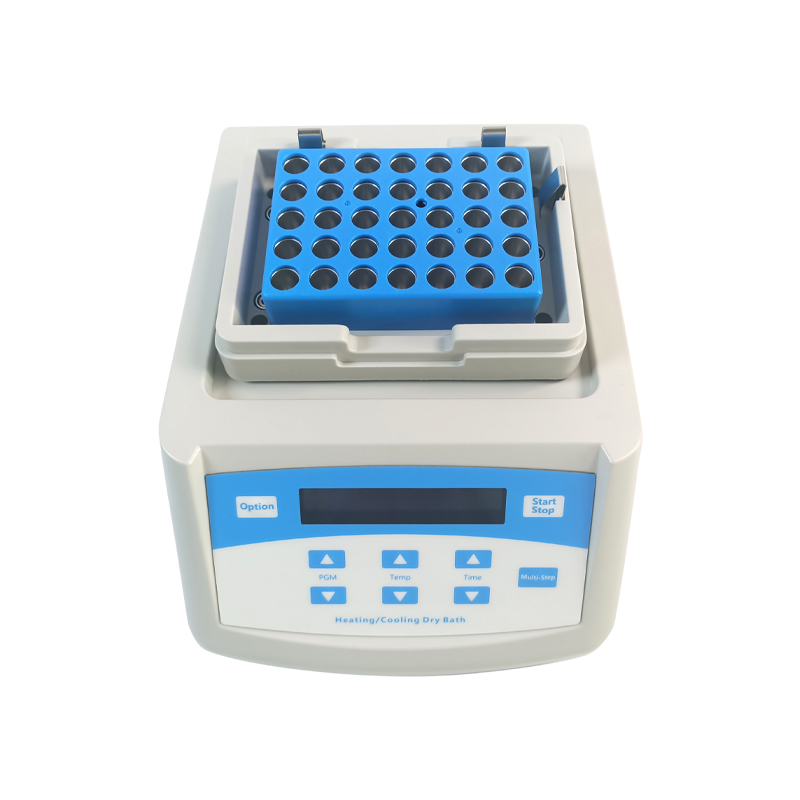

The WDC10 Chilling/Heating Dry Bath is a compact and versatile benchtop unit that offers reliable temperature control for a wide range of laboratory applications. Utilizing a high-quality Peltier thermoelectric module, the system ensures stable long-term performance for both chilling and heating needs.
Product Details
Product Description:
The WDC10 Chilling/Heating Dry Bath is a compact and versatile benchtop unit that offers reliable temperature control for a wide range of laboratory applications. Utilizing a high-quality Peltier thermoelectric module, the system ensures stable long-term performance for both chilling and heating needs.
Key Features:
Energy-efficient Peltier-based temperature control
Built-in over-temperature protection for added safety
Electronic calibration adjustable to local standards
Automatic fault detection with buzzer alarm
Compact footprint, ideal for limited bench space
Interchangeable aluminum blocks for easy cleaning and disinfection
Internal power supply compliant with UL, CSA, and CE standards
Custom block modules available upon request
Audible alert when temperature cycle completes
Typical Applications:
Ligation reactions at 14°C
Oocyte storage at 17°C
Sample storage at cold-room or ice-bucket temperatures
On-site enzyme or DNA library storage
PCR setup and reaction preparation
Chilling or heating of field-collected samples
Enzymatic reactions and thermal deactivations
Parameters:
Model | WDC10 |
Temp setting range | -10℃~100℃ |
Temp control range | RT.-30℃~100℃ |
Time range | 1min ~ 99h59min/∞ |
Temp accuracy | ≤±0.3℃ |
Display accuracy | 0.1℃ |
Temp uniformity | ≤±0.3℃ |
Heating time | ≤12min(from 25℃ to 100℃) |
Cooling time | ≤10min(from 100℃ to 25℃) |
Cooling time | ≤25min(from RT. to RT.-30℃) |
AUTO-4℃ | Yes |
Multi points running | Yes(Max 5 points) |
Multi cycle | Yes(Max 99 times) |
Auto running | Yes |
Auto heating | Yes |
Auto resume to run | Yes |
Power | 150W |
Power input | AC100~240V/50-60Hz |
Fuse | 250V 3A Ф5×20 |
Dimension(mm) | 260*195*150 |
Weight(kg) | 4.5 |
Optional Blocks:
Type | Description |
MD30 | 96*0.2mL |
MD31 | 54*0.5mL |
MD32 | 35*1.5mL |
MD33 | 35*2.0mL |
MD34 | 15*0.5mL+20*1.5mL |
MD35 | 96*0.2mL(elisa plate) |
MD36 | 24*5mL |
MD37 | 15*10mL |
MD38 | 12*15mL |
MD39 | 6*50mL(round-shape bottom) |
MD39-S | 6*50mL(cone-shape bottom) |
