WDH200 Series Multi-Function Dry Bath Incubator

The WDH200 Dry Bath Incubator is a high-performance, microprocessor-controlled dry block heating system designed for precise and reliable temperature control.

Product Details

The WDH200 Dry Bath Incubator is a high-performance, microprocessor-controlled dry block heating system designed for precise and reliable temperature control. It offers a clean and efficient alternative to traditional water baths by using high-purity aluminum blocks for uniform heating. With independent timing groups and a wide range of compatible heating modules, this unit is ideal for molecular biology workflows, clinical diagnostics, and general biochemical incubation needs.

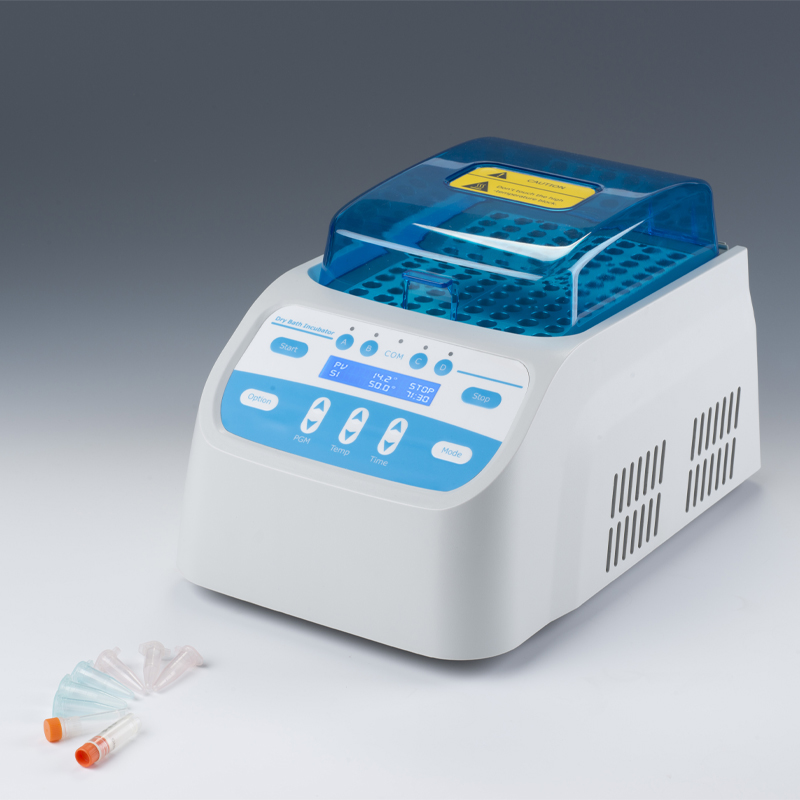

WDH200 Dry Bath Incubator1

Key Features:

Accurate PID Temperature Control: Ensures uniform heating and excellent temperature stability throughout the block.

LCD Interface with Intuitive Setup: Clear display for real-time temperature and time tracking; simple parameter setting.

Multi-Group Timing System: Supports four independent groups (A/B/C/D) for simultaneous or separate timing of multiple samples.

Transparent Lid for Safety: Blue acrylic cover prevents splashing and minimizes contamination risk while allowing sample visibility.

Flexible Block Options: Compatible with a variety of standard tube formats and microplates; custom blocks available on request.

Built-in Safety Systems: Features over-temperature protection, automatic fault detection, and temperature calibration.

Smart Functions: Includes automatic preheating, auto resume after power failure, and programmable continuous operation.

Easy Maintenance: Removable aluminum blocks make cleaning and disinfection straightforward.

WDH200 Dry Bath Incubator2

Parameters:

Model	WDH200
Temp setting range	0°C ~110°C
Temp control range	RT+5°C ~110°C
Timing range	1min ~ 99h59min/∞
Temp accuracy	≤±0.3°C@37°C
Display accuracy	0.1°C
Temp uniformity	≤±0.3°C@37°C
Heating time	≤20min(from 25°C~110°C)
Auto heating	Yes
Auto running	Yes
Auto resume to run	Yes
Timing independently for each group	Yes
Block quantity	4
Power	500W
Voltage	AC110V or AC220V/50-60Hz
Fuse	250V 3A Ф5×20
Dimension(mm)	370x254x228
Weight(kg)	8.0

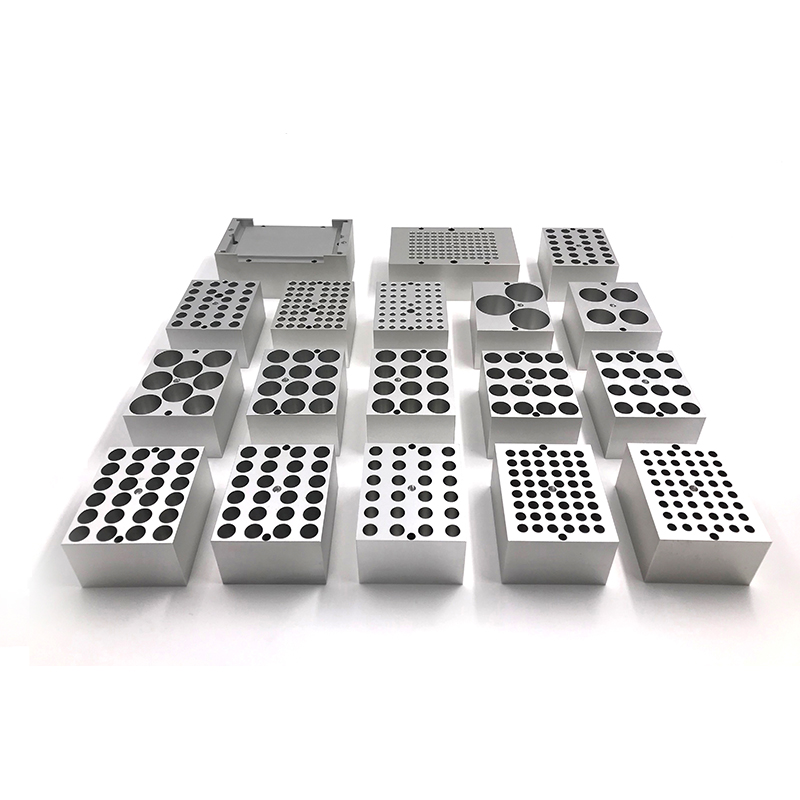

Optional Blocks:

Model	Tube Diameter	Capacity	Model	Diameter	Capacity
MD01	6mm	48	MD10	26mm	8
MD02	7mm	48	MD11	28mm	4
MD03	10mm	24	MD12	40mm	3
MD04	12mm	24	MD13	0.2ml centrifuge tube	48
MD05	13mm	24	MD14	0.5ml centrifuge tube	48
MD06	15mm	16	MD15	1.5ml centrifuge tube	24
MD07	16mm	16	MD16	2.0ml centrifuge tube	24
MD08	19mm	12	MD17	0.2ml PCR plate	96
MD09	20mm	12	MD18	0.2ml Elisa plate	96
