WIS4000M Laboratory Incubator Shaker - Small Space Large Capacity_Incubator Shaker_Products

Products

Incubator Shaker

WIS4000M Laboratory Incubator Shaker - Small Space Large Capacity

Welso incubator shaker supports single, double or triple stacking, which can be directly placed on the ground to minimize the floor space. For single or double stacking combinations, it is recommended to use Welso special floor stand to ensure more stable operation and more convenient operation.

Product Details

Flexible stacking design saves valuable space

Smart touch, clear operation

Equipped with a high-resolution touch screen, it displays key parameters such as time, speed, temperature, humidity, etc. in real time, and the operation is intuitive and convenient. It supports up to 12 program settings to meet the precise control of environmental changes in complex experimental processes, and provides an ideal platform for multi-stage culture experiments.

Pull-out structure, easy loading and unloading and cleaning

The innovative pull-out structure design greatly improves the efficiency of sample loading and cleaning. Users only need to operate the locking handle with one hand to quickly complete the loading and unloading of the fixture, saving time and effort, and improving experimental efficiency and user experience.

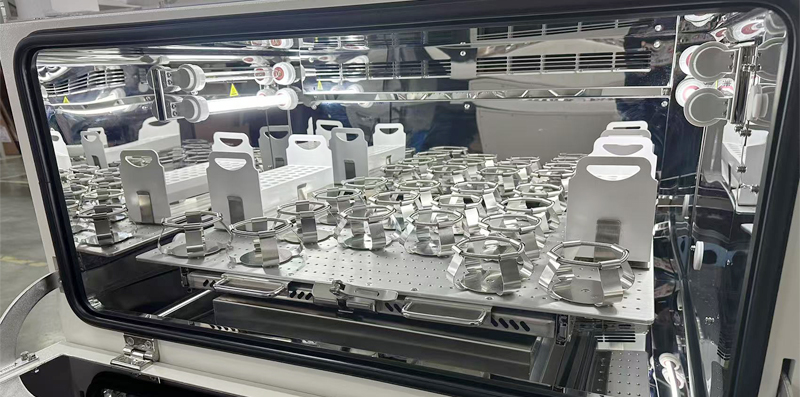

WIS4000M-1

Features

•10" high resolution LCD touch screen with simultaneous display of all parameters.

•Bi-directional ultraviolet sterilization.

•Slide-out platform for easy cleaning and accessibility of samples.

•Large capacity for batch culture and shaking.

•Optional WiFi and computer monitoring systems allow remote control to ensure safety.

•CO₂ infrared sensor and effective inlet filter.

•Temp. uniformity ≤±0.4°C(@37℃).

•Magnetic drive motor for stable and reliable shaking with low maintenance.

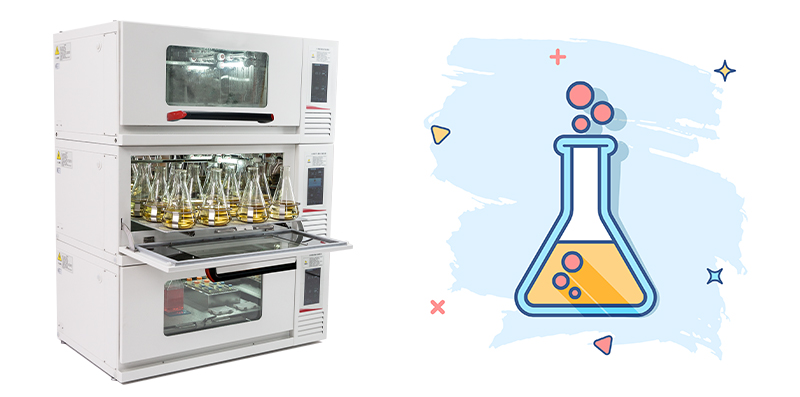

WIS4000M

Technical Specifications

Model	WIS4000M	WIS4000MC	WIS4005M	WIS4005MC
Product Name	stackable Incubator Shaker,touch screen	stackable Incubator Shaker with CO2 Controller,touch screen	stackable Incubator Shaker,touch screen,shaker diameter 50mm	stackable Incubator Shaker with CO2 Controller,touch screen,shaker diameter 50mm
Shaking
Orbit Diameter	26mm		50mm
Speed	0 (stop), 30 - 350 rpm
Speed Accuracy	±1rpm
Temperature
Temp.Range	Room Temp.Minus 18℃-60℃(lowest Temp. is 4 ℃)
Temp.Accuracy	±0.1℃
Temp.Uniformity	±0.4℃(@37℃)	±0.3℃(@37℃)	±0.4℃(@37℃)	±0.3℃(@37℃)
Power When Heating	≤850w
Power When Cooling	70~230w
CO2
CO2 Sensor	NA	IR	NA	IR
CO2 Control Range	NA	0-20%	NA	0-20%
CO2 Control Accuracy	NA	±0.1%	NA	±0.1%
Recover Time After Open Door 30s on Temp.	≤6min(@37℃)
Recover Time After Open Door 30s on CO2	NA	≤6min(@5%)	NA	≤6min(@5%)
Humidity
Humidity Type	NA	Evapor Naturally	NA	Evapor Naturally
Max.Humidity	NA	95%	NA	95%
General
Platform Dimensions	900x560mm
Capacity	401L
Max.load	20KG
Programmable Segments	12mSegments
illumination	LED Lamps on Left and Right Walls
Disinfection	UV Lamps on Left and Right Walls
Protect Set Parameters	Passwords Protect
Door Open Direction	Downward
Data Display	Temp, Speed	Temp, Speed, CO2, RH	Temp, Speed	Temp, Speed, CO2, RH
Display	10" High-Res Color Touch Screen
Timer	0-999h59min
USB Export Data	Yes
Screen Data Display	Displays Most Recent 7 Days of Data
Operating Data Storage Cycle	More than 912 days
Data Storage Interval	1 min
Data Stored	Time, Temp, Speed, Status	Time, Temp, Speed, Status, CO2, RH	Time, Temp, Speed, Status	Time, Temp, Speed, Status,CO2, RH
Auto-Defrost	Yes
Auto Screen Off	Yes
Auto Screen Lock	Yes
Third Platform Height	1491mm
Plateform with Rails	Yes
Noise Level	≤55dB(When compressor is running)
AuTo-recovery After Power Interuption	Yes
Power	≤900w	≤1000w	≤900w	≤1000w
Power Supply	AC 220V±22V, 50Hz/60Hz
RH Control	NA	Optional(10% above ambient humidity, up to 90%)	NA	Optional(10% above ambient humidity, up to 90%)
Mobile Monitor and Control by WIFI	Optional
PC monitor and Control by RS485	Optional
Window cover	Optional
Net Weight	265kg	270kg	265kg	270kg
Internal Working Height	335mm
External Dimensions	1400886(600+80 feet high)mm

FAQ

Q:How to monitor and control the incubator shaker?

A:User can operate on the instrument directly or monitor and control on the mobile phone.

Q:Are all models of incubator shakers stackable?

A:Yes, all non-benchtop incubator shaker is stackable. We suggest to use a base frame to support one unit or 2 units incubator shakers for better operation experience.

Q:Are the clamps, Mats and tray standard configurations of the incubator shaker？

A:No, they are optional. User can choose according to their requirements.

Q:Is Welso Incubator shaker for cells or bacteria culture?

A:We have both. Models with C ( carbon dioxide ) can be used for cell culture. Models without carbon dioxide can only be used for bacteria culture.

Q:What are the orbits of incubator shaker?

A:We have 2 orbits incubator shaker 26mm and 52mm.
