Products
Mixer,Shakers

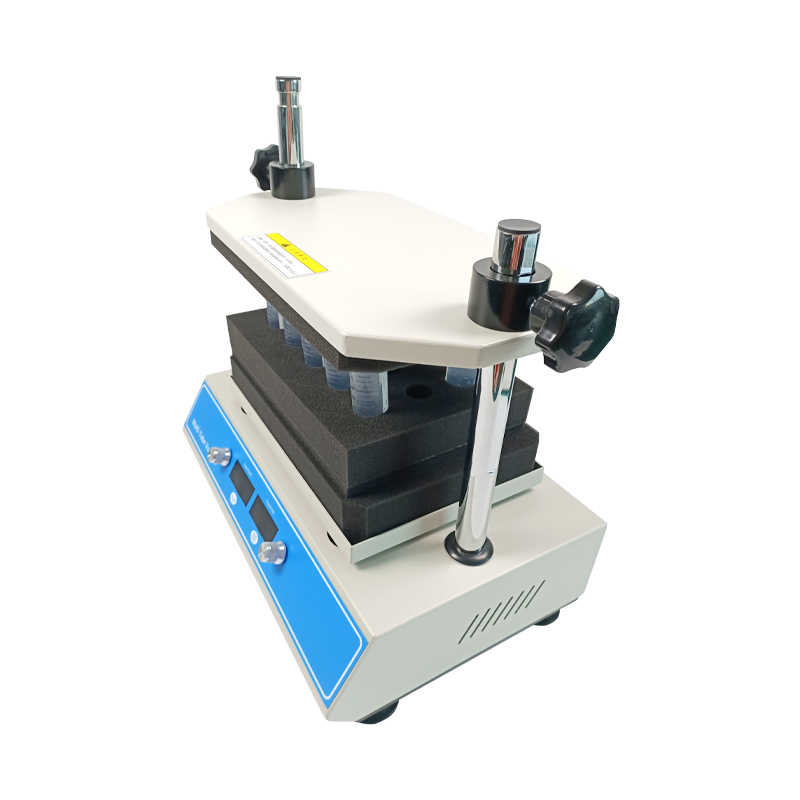

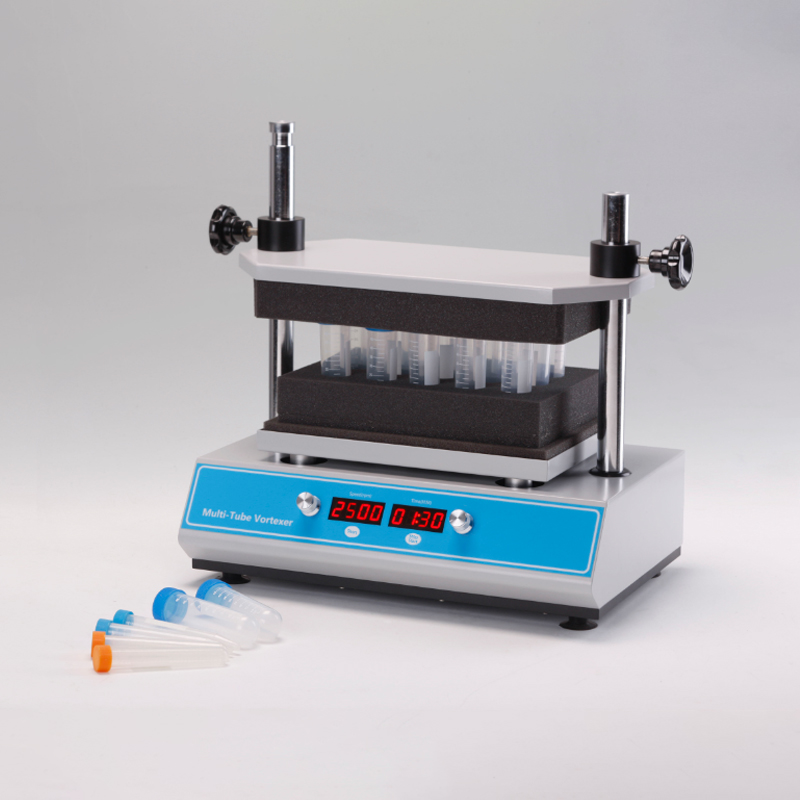

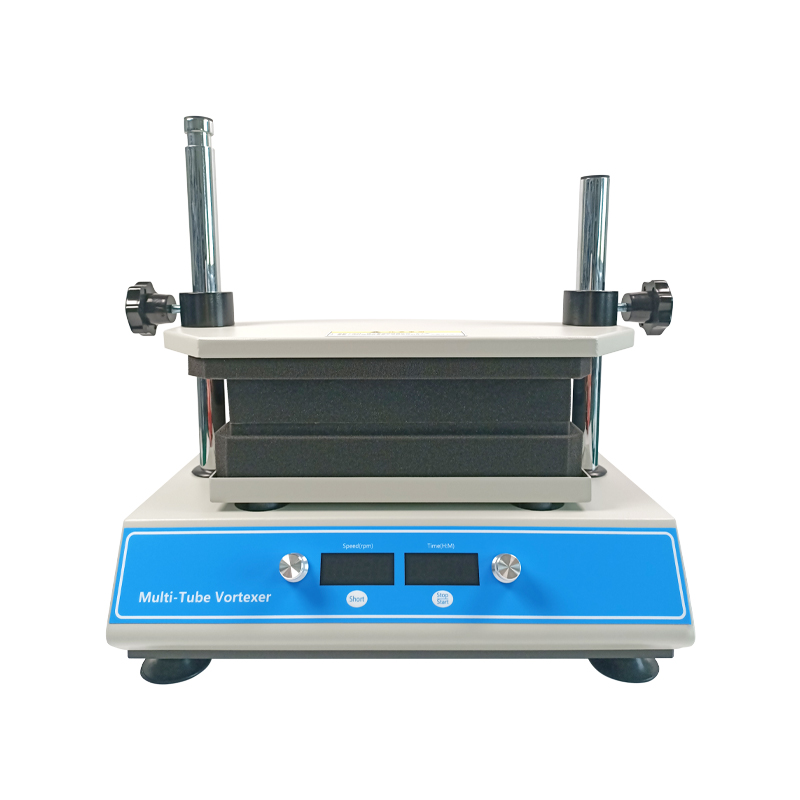

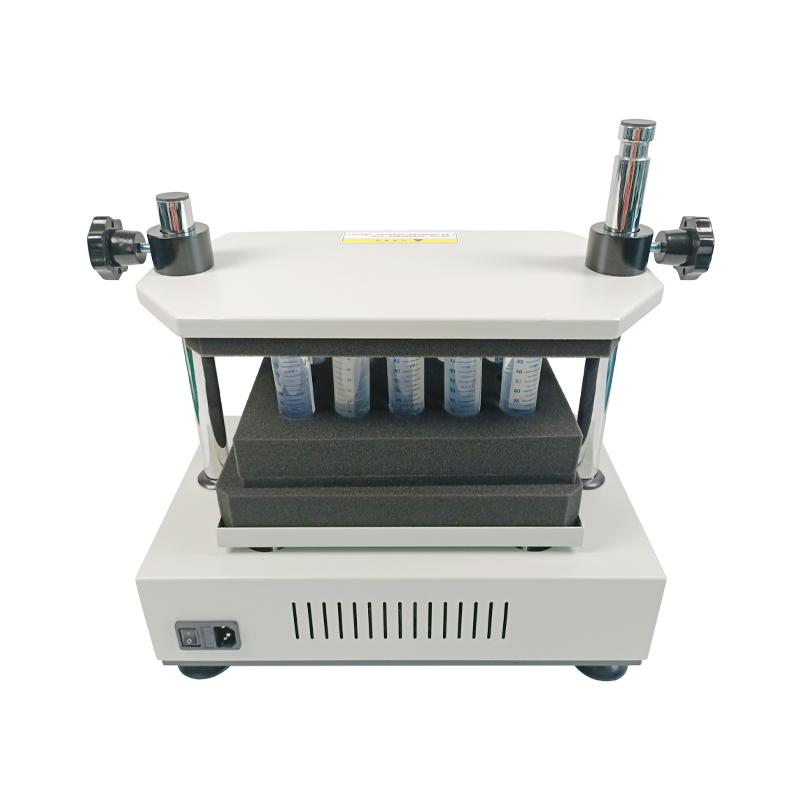

The WMV200 Multi-Tube Vortexer integrates advanced microprocessor control and a high-torque brushless DC motor to deliver robust and repeatable vortex mixing for up to 50 tubes in a single run. Designed for demanding laboratory applications, the WMV200 offers programmable operation with intuitive control via a multifunction rotary knob.
Product Details
The WMV200 Multi-Tube Vortexer integrates advanced microprocessor control and a high-torque brushless DC motor to deliver robust and repeatable vortex mixing for up to 50 tubes in a single run. Designed for demanding laboratory applications, the WMV200 offers programmable operation with intuitive control via a multifunction rotary knob. The unit supports a wide range of test tube types through customizable foam racks, making it adaptable for sample preparation in genomics, proteomics, pharmacology, and clinical environments.
Technical Advantages:
Microprocessor-based control system ensures consistent speed (up to 2500 RPM) and mixing accuracy across varying tube loads.
Long-lasting brushless motor system enables quiet, stable, and maintenance-free operation.
Extended timing range (up to 99h59min) suitable for both short bursts and long-term mixing protocols.
Modular foam rack design supports rapid swapping between tube configurations, increasing operational flexibility.
Compact design with optimized weight distribution for stability during high-speed operation.
Audible notification and auto-stop function enhance experiment safety and precision.
Programmable soft start minimizes disturbances to delicate biological samples.
Parameters
Model | WMV200 | ||
Speed range | 500~2500rpm | ||
Orbit | 4mm | ||
Timing range | 1min ~100hour | ||
Max load | 4.5kg | ||
Power supply | 70W | ||
Voltage | AC110~220V 50/60Hz | ||
Capacity | Type | Foam rack | Test tube |
MS200-T10 | 50x￠10mm | ￠9~￠10mm | |
MS200-T12 | 50x￠12mm | ￠11~￠13mm | |
MS200-T15 | 50x￠15mm | ￠14~￠17mm | |
MS200-T20 | 50x￠20mm | ￠18~￠21mm | |
MS200-T25 | 15x￠25mm | ￠24~￠27mm | |
MS200-T29 | 15x￠29mm | ￠28~￠32mm | |
Dimension(mm) | 410x276x432 | ||
Weight(kg) | 20 | ||
