Products
Sample Concentrator

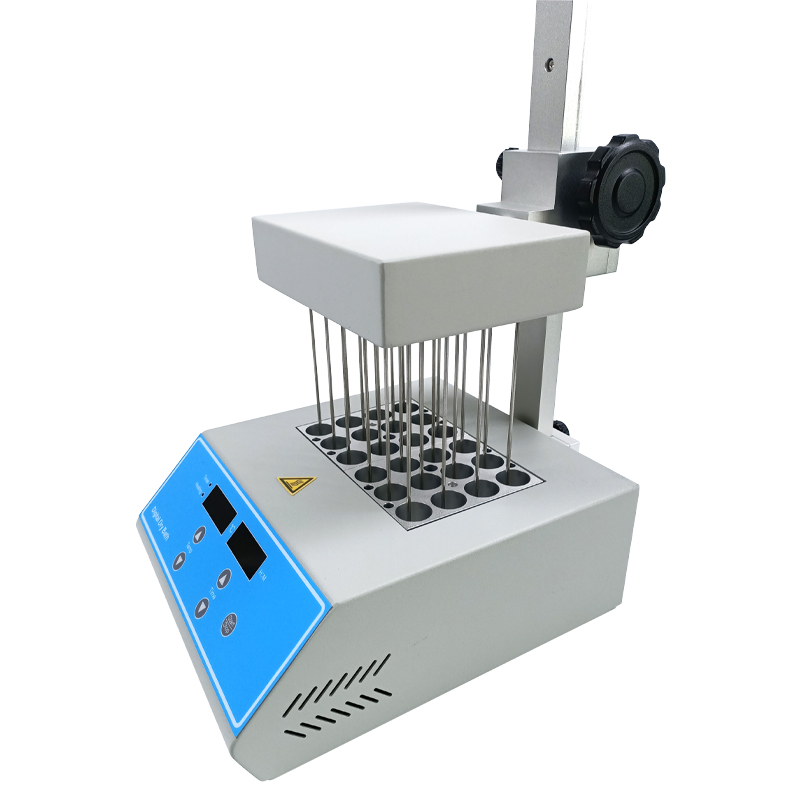

The WSC100-2 is a high-performance nitrogen sample concentrator that delivers rapid evaporation of solvents with outstanding temperature accuracy.
Product Details
The WSC100-2 is a high-performance nitrogen sample concentrator that delivers rapid evaporation of solvents with outstanding temperature accuracy. It replaces water bath heating with a high-purity aluminum dry block, ensuring faster heat transfer and uniform temperature distribution. With the ability to concentrate dozens of samples simultaneously, it is ideal for high-throughput labs.
Key Benefits:
● Precise temperature control via microprocessor & PID logic
● Simultaneous nitrogen blowdown for multiple test tubes
● Easy-to-replace heating blocks; simple cleaning & maintenance
● Over-temperature protection & error alarm system
● Calibration function for accurate and repeatable results
Ideal For:
● Food safety labs analyzing pesticide residues
● Environmental testing for water quality
● Life science labs preparing hormone or biomolecule samples
● Analytical chemistry involving LC/GC-MS workflows
● Pharmaceutical quality assurance and R&D labs
Parameters:
Model | WSC100-2 |
Temp range | RT.+5°C -160°C |
Temp accuracy | ±0.5℃(@40℃) |
Temp accuracy | ±1℃(@120℃) |
Temp uniformity | ±0.5℃ |
Display accuracy | 0.1℃ |
Time range | 1min-99h59min/∞ |
Heating time | ≤15min(from 25℃ to 160℃) |
Needle length | 150mm |
Nitrogen flow rate | 15L/min |
Nitrogen pressure | 0.02Mpa (Gas needle≤16pcs) 0.05Mpa (Gas needle＞16pcs) |
Block quantity | 2 |
Max power | 500W |
Voltage | AC220V or AC110V, 50/60Hz |
Dimension(mm) | 260*220*450 |
Weight(kg) | 7.5 |
Optional Blocks:
Type | Description | Type | Description |
MD03 | 24*10mm | MD09 | 12*20mm |
MD04 | 24*12mm | MD10 | 8*26mm |
MD05 | 24*13mm | MD11 | 4*28mm |
MD06 | 16*15mm | MD12 | 3*40mm |
MD07 | 16*16mm | MD15 | 24*1.5mL (centrifuge tube) |
MD08 | 12*19mm | MD16 | 24*2.0mL (centrifuge tube) |
