Sample Concentrator

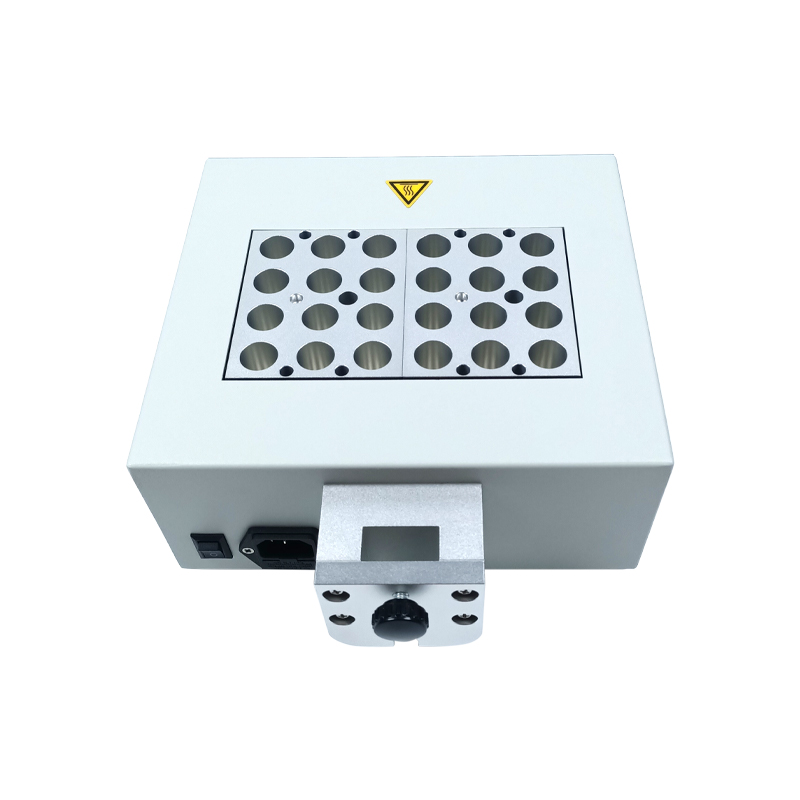

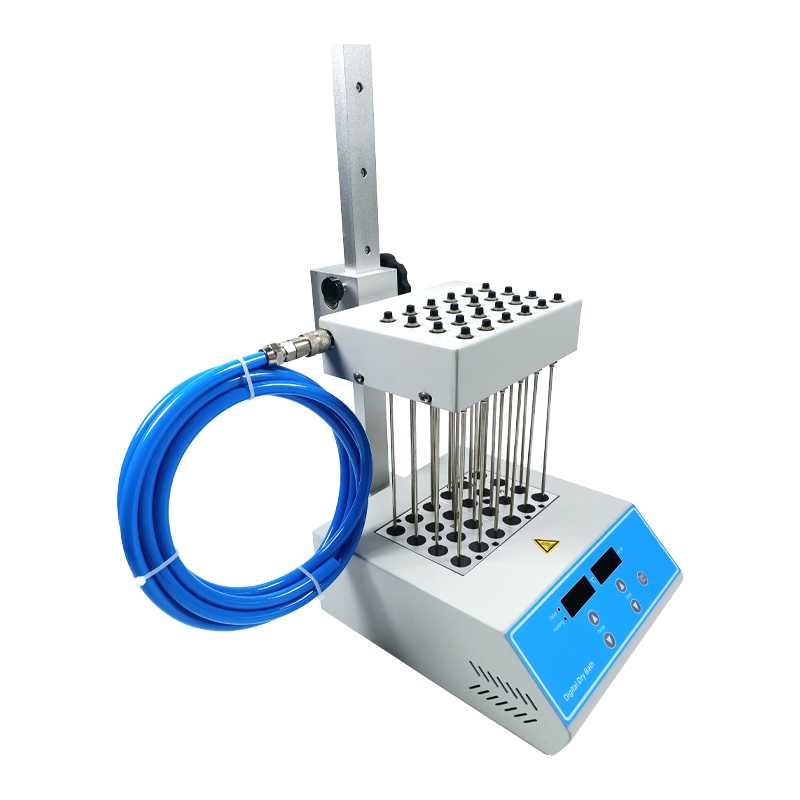

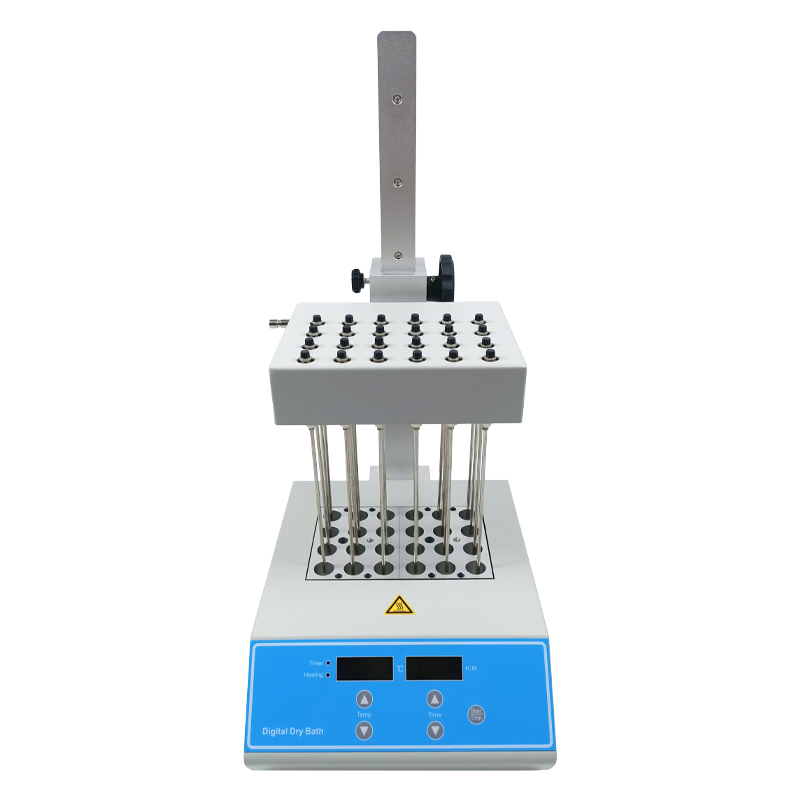

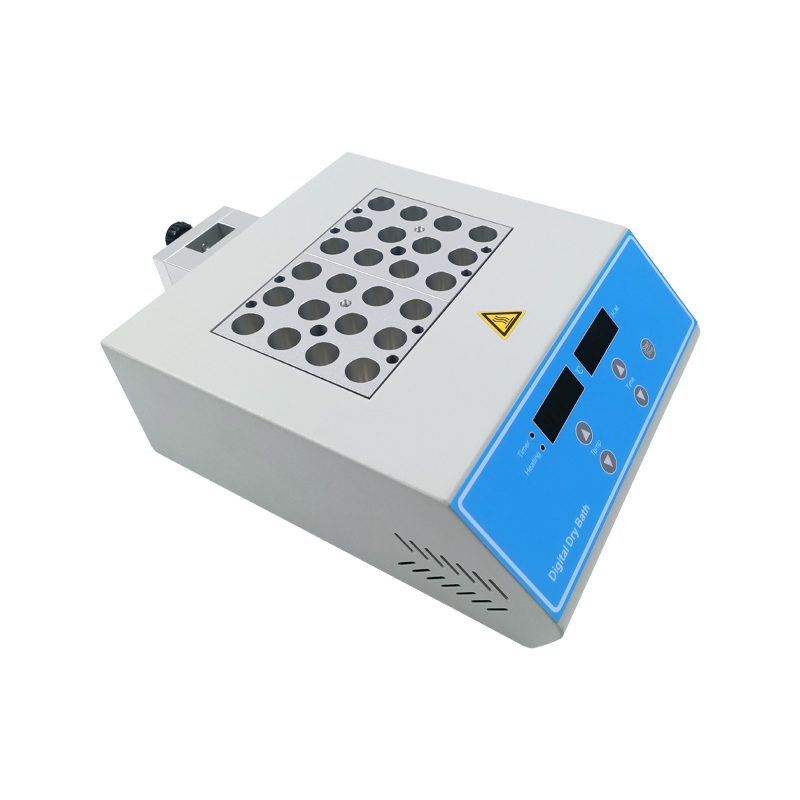

The WSC200-2 Nitrogen Sample Concentrator offers an advanced solution for rapid and precise evaporation of solvents in multiple test tubes simultaneously. Ideal for laboratories requiring high-throughput processing, this concentrator features a dry-block heating system using high-purity aluminum, delivering fast temperature rise and excellent uniformity.
Product Details
The WSC200-2 Nitrogen Sample Concentrator offers an advanced solution for rapid and precise evaporation of solvents in multiple test tubes simultaneously. Ideal for laboratories requiring high-throughput processing, this concentrator features a dry-block heating system using high-purity aluminum, delivering fast temperature rise and excellent uniformity. With independently controlled nitrogen blow-down channels, it ensures efficient and contamination-free sample preparation.
Product Advantages:
★ Microprocessor + PID fuzzy control ensures accurate temperature stability.
★ Independent gas control for each tube allows customized evaporation per sample.
★ Adjustable nitrogen flow improves efficiency across varied sample types.
★ Dry-block heating avoids water bath maintenance and contamination issues.
★ Compact and safe design, easy to use with minimal training required.
Industries & Applications:
★ Agricultural product testing for pesticide residues.
★ Environmental monitoring of water bodies.
★ Biomedical research and hormone sample preparation.
★ Food safety labs analyzing dairy, alcohol, and beverages.
★ Pharmaceutical labs for TCM extracts and drug compound screening.
Parameters:
Model | WSC200-2 |
Temp range | RT.+5℃-160℃ |
Temp accuracy | ±0.5℃(@40℃) |
Temp accuracy | ±1℃(@120℃) |
Temp uniformity | ≤±0.5℃ |
Display accuracy | 0.1℃ |
Timing range | 1min-99h59min/∞ |
Heating time | ≤15min(from 25℃ to 160℃) |
Needle length | 150mm |
Nitrogen flow rate | 15L/min |
Nitrogen pressure | 0.1Mpa |
Block quantity | 2 |
Max power | 500W |
Voltage | AC220V or AC110V, 50/60Hz |
Dimension(mm) | 260X220X475 |
Weight(kg) | 7.5 |
Optional Blocks:
Type | Description | Type | Description |
MD50 | 12x10mm | MD54 | 12x16mm |
MD51 | 12x12mm | MD55 | 12x19mm |
MD52 | 12x13mm | MD56 | 12x20mm |
MD53 | 12x15mm | --- | --- |
