Sample Concentrator

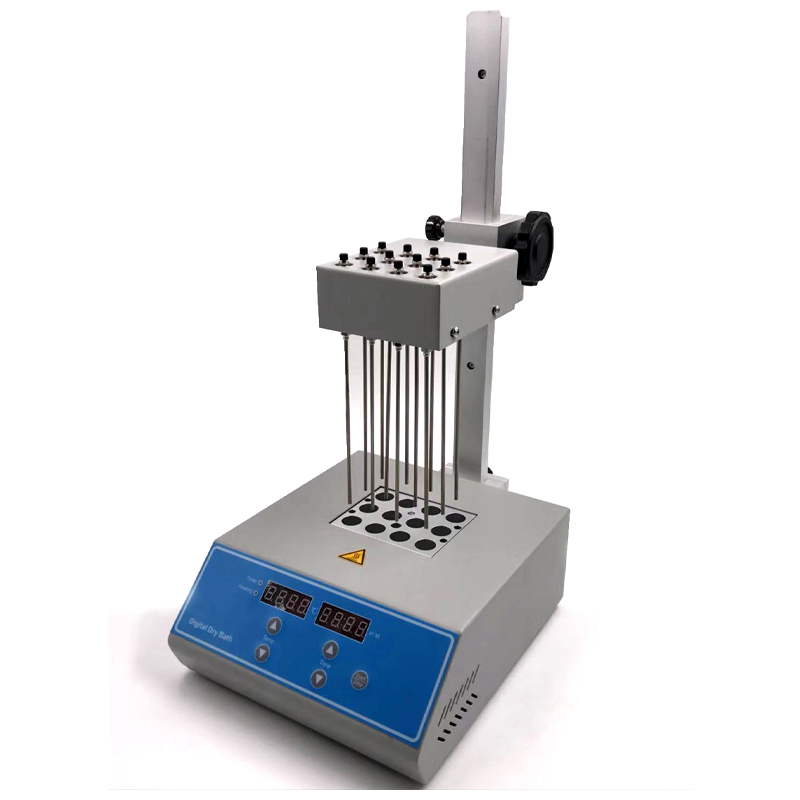

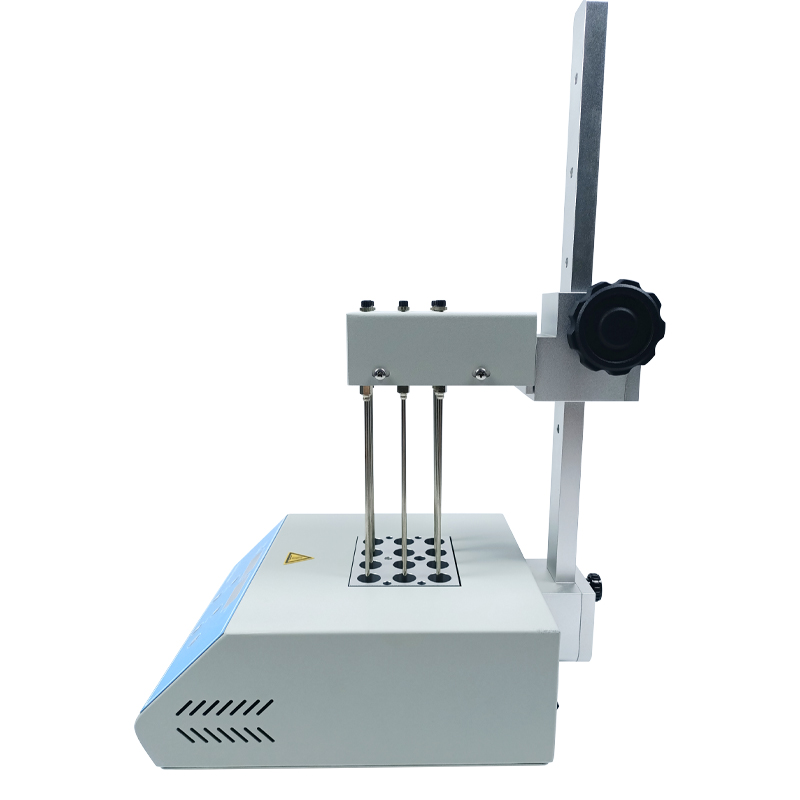

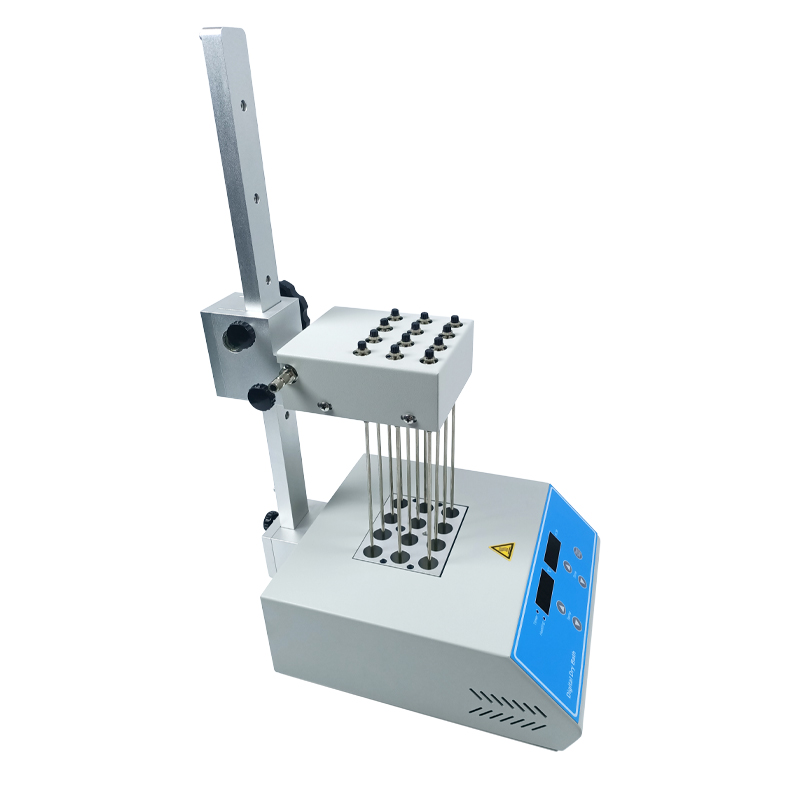

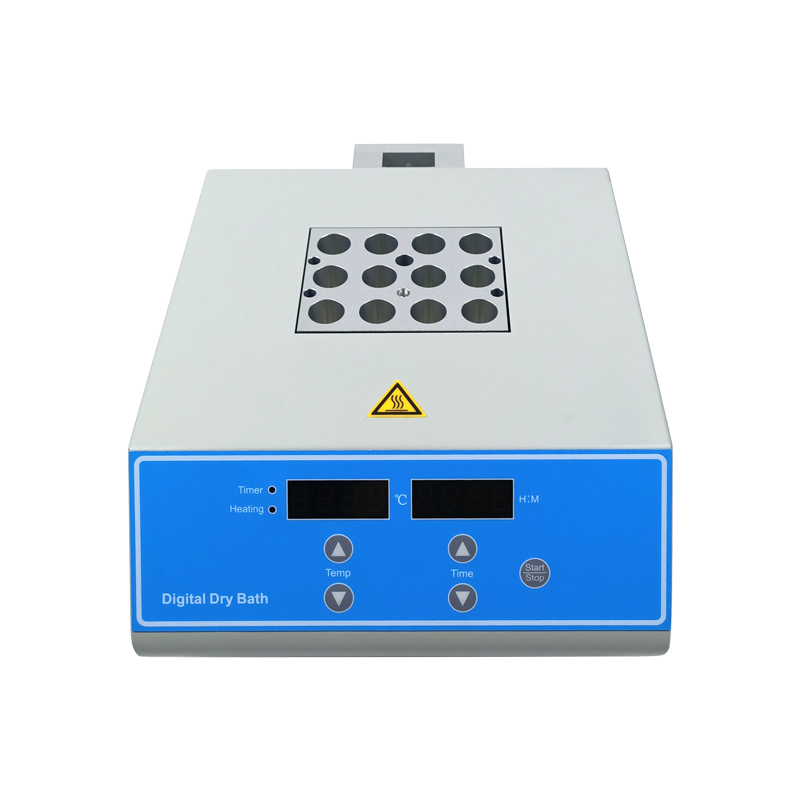

The WSC200-1 is a lab-grade sample concentrator designed for high-throughput evaporation tasks using nitrogen gas. It features high-purity aluminum block heating, microprocessor-based PID temperature control, and individual airflow regulation per tube. Ideal for laboratories handling food safety, drug testing, environmental monitoring, and chemical research.
Product Details
The WSC200-1 is a lab-grade sample concentrator designed for high-throughput evaporation tasks using nitrogen gas. It features high-purity aluminum block heating, microprocessor-based PID temperature control, and individual airflow regulation per tube. Ideal for laboratories handling food safety, drug testing, environmental monitoring, and chemical research.
Key Features:
✔ Individual nitrogen blow for each sample
✔ Adjustable airflow per sample for flexible evaporation control
✔ Uniform heating via aluminum block – no water bath required
✔ User-friendly, reliable and safe operation
✔ Compatible with various tube sizes for different applications
Main Uses:
✔ Food residue analysis (pesticides, preservatives)
✔ Environmental testing (water and wastewater samples)
✔ Biotech and pharmaceutical sample prep (hormones, metabolites)
✔ LC-MS/GC-MS sample concentration
Parameters:
Model | WSC200-1 |
Temp range | RT.+5℃-160℃ |
Temp accuracy | ±0.5℃(@40℃) |
Temp accuracy | ±1℃(@120℃) |
Temp uniformity | ±0.5℃ |
Display accuracy | 0.1℃ |
Timing range | 1min-99h59min/∞ |
Heating time | ≤15 min (from 25℃ to 160℃) |
Needle length | 150mm |
Nitrogen flow rate | 15L/min |
Nitrogen pressure | 0.1Mpa |
Block quantity | 1 |
Max power | 300W |
Voltage | AC220V or AC110V, 50/60Hz |
Dimension(mm) | 260*220*475 |
Weight(kg) | 6.0 |
Optional Blocks:
Type | Description | Type | Description |
MD50 | 12*10mm | MD54 | 12*16mm |
MD51 | 12*12mm | MD55 | 12*19mm |
MD52 | 12*13mm | MD56 | 12*20mm |
MD53 | 12*15mm | --- | --- |
