Products
Sieve Shaker
The WAS100 Ultrasonic Vibratory Sieve Shaker combines ultrasonic energy with traditional mechanical vibration to deliver superior screening performance for fine, lightweight, and adhesive powders.
Product Details

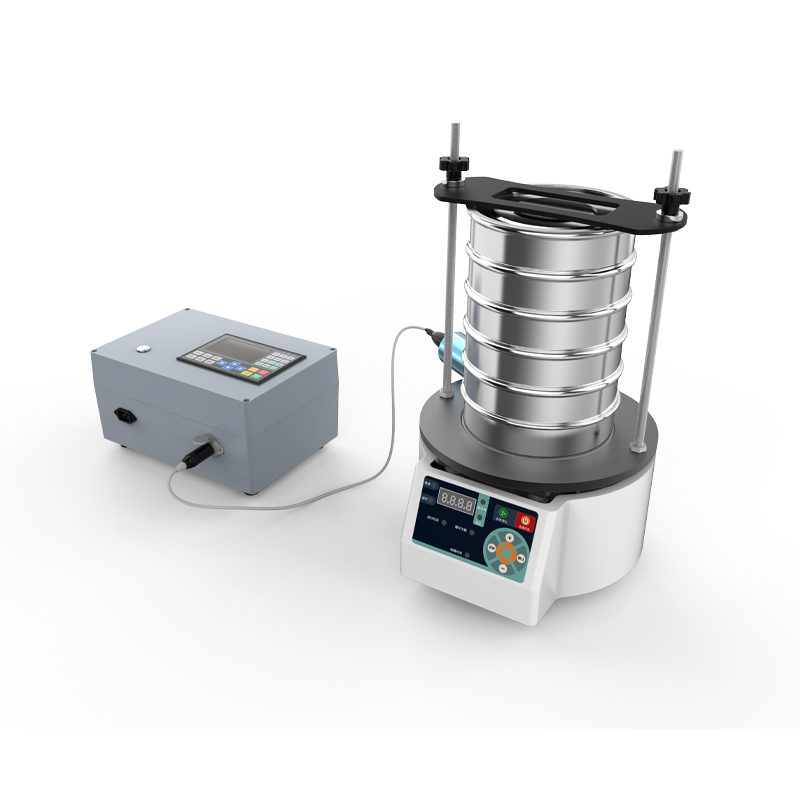

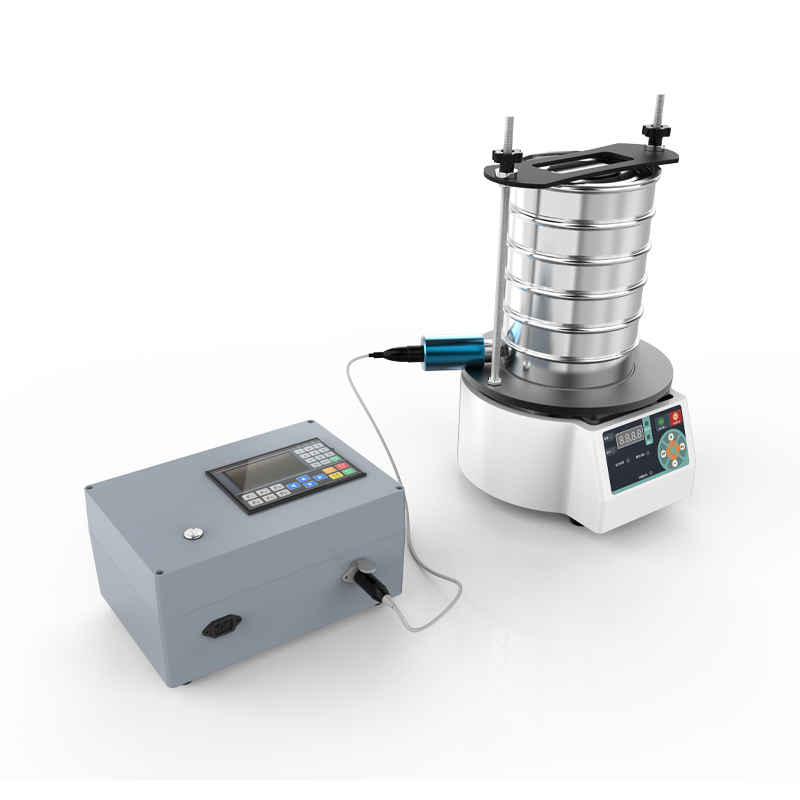

The WAS100 Ultrasonic Vibratory Sieve Shaker combines ultrasonic energy with traditional mechanical vibration to deliver superior screening performance for fine, lightweight, and adhesive powders. Widely used in pharmaceutical, chemical, metallurgical, food, and mineral processing applications, it provides fast, clean, and accurate particle separation.
Ultrasonic vibration prevents particle agglomeration and eliminates static electricity, allowing materials to spread uniformly over the sieve mesh. This advanced ultrasonic sieving technology dramatically reduces screen clogging and increases effective screening efficiency.
Designed with a stainless steel top cover, the WAS100 meets pharmaceutical industry requirements and ensures a clean, enclosed sieving process without powder escape. The adjustable ultrasonic power output allows users to fine-tune performance based on material density, particle size, and flow behavior.
Key Features
Enhanced screening efficiency through ultrasonic vibration
Effective anti-static and anti-clogging performance
Quiet operation suitable for laboratory and production environments
Adjustable ultrasonic power for flexible material handling
Fully enclosed stainless steel design to prevent powder loss
Technical Parameters
Model | WAS100 |
Sample Type | Powder, Granules, Small Lumps, Loose Materials |
Processing Mode | Particle Size Analysis, Separation, Classification |
Max. Load | ≤ 3 kg (depending on material properties) |
Max. No. of Sieves | 1–8 sieves (5 sieves standard, standard test sieves required) |
Max. Amplitude | 3mm |
Max. Frequency | 3000r/min |
Sieving Range | 20μm-125mm |
Voltage/Power | 220V/200W |
Dimensions (L*W *H) | 355*320*580mm |
Batch Load | ≤200g |
Sieve Shaker Weight | 26Kg |
Ultrasonic Generator Frequency | 18-35.5KHz |
Ultrasonic Power | 150W |
Operating Time Range | 1-9999s |
Cycle Range | 1-9999s |
Interval Time Range | 1-9999s |
Max. Sieve Diameter | 200mm |
Main Functions | Timed, Continuous Sieving, Intermittent Sieving |
Sieving Method | Dry Sieving |
