Sieve Shaker

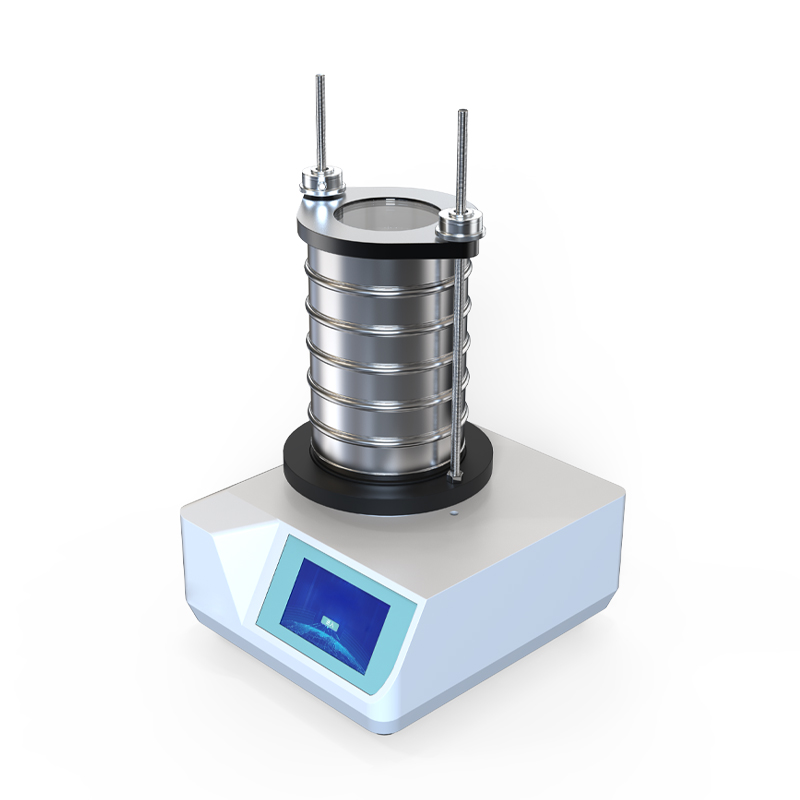

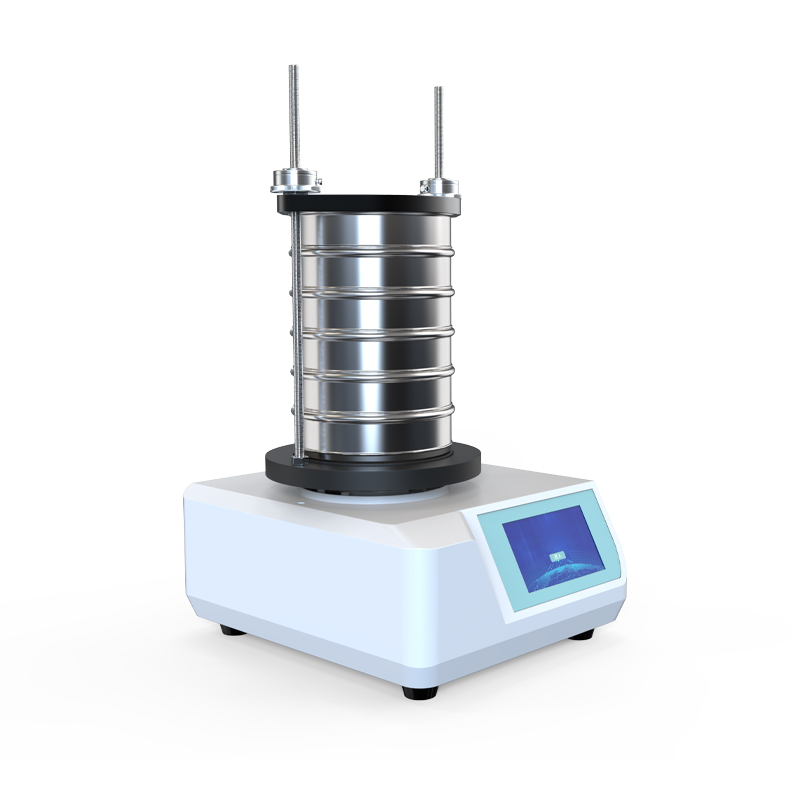

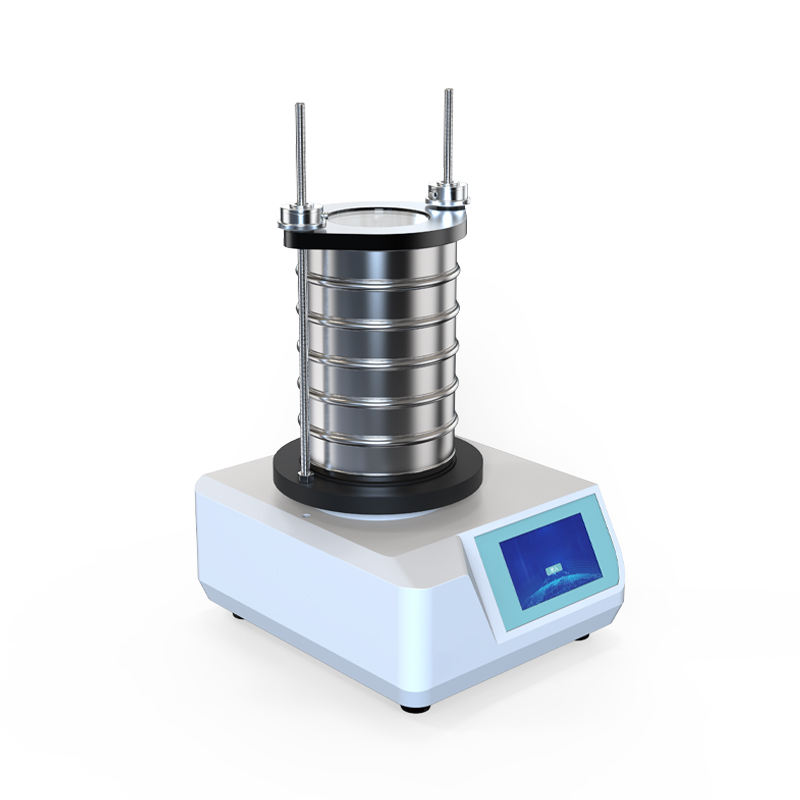

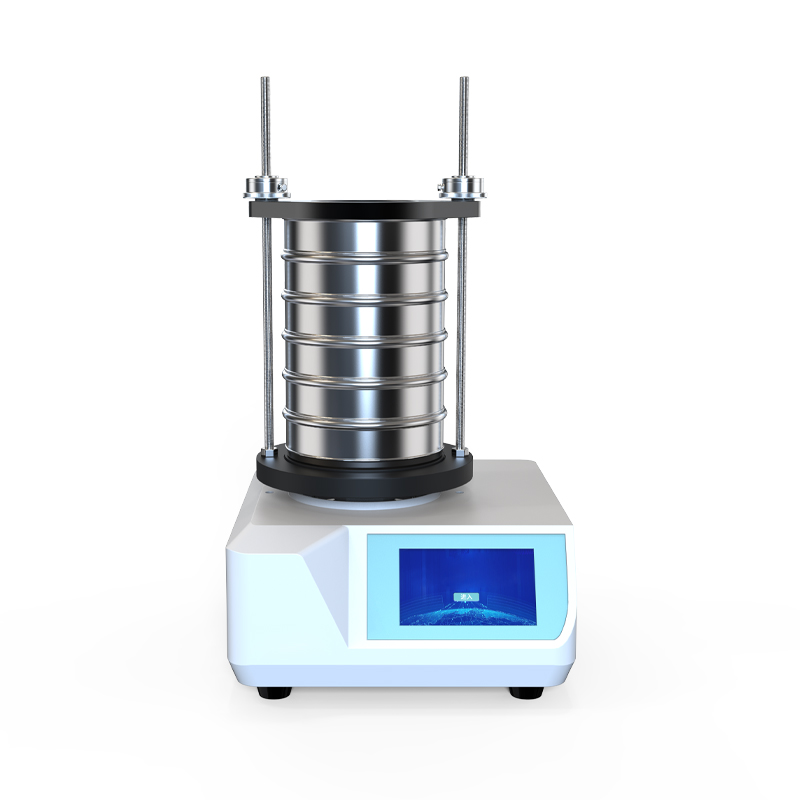

The WAS200 Series 3D Electromagnetic Vibratory Sieve Shaker (Wet Sieving) is designed for efficient and accurate particle size separation in laboratory environments.
Product Details
Fast, Uniform and High-Precision Sieving for Laboratory Applications
The WAS200 Series 3D Electromagnetic Vibratory Sieve Shaker (Wet Sieving) is designed for efficient and accurate particle size separation in laboratory environments. It is widely used in agriculture, soil analysis, coal, chemical processing, synthetic materials, pharmaceuticals, geology, metallurgy, engineering, electronics, construction materials, environmental testing, recycling, glass, ceramics, biology, and food industries.
Driven by advanced electromagnetic vibration technology, the WAS200 generates a true three-dimensional throwing motion, allowing samples to spread evenly across the entire sieve surface and move efficiently during operation. This ensures high separation accuracy within a short processing time, significantly improving overall laboratory efficiency.
Equipped with a digital time control panel, the instrument supports constant-amplitude intermittent sieving, as well as timed wet sieving with internal and external circulation systems. With simple operation, reliable performance, and high safety standards, the WAS200 is suitable for dry, wet, and liquid samples ranging from 20 g to 3 kg, offering a versatile solution for modern laboratories.
Key Advantages
True 3D throwing motion for uniform sample distribution
Digital timer control for continuous, intermittent, and timed sieving
Low-noise ergonomic design for comfortable operation and easy maintenance
Transparent lid with viewing window for real-time process monitoring
Dual internal & external circulation system for high-precision wet sieving
Suitable for dry, wet, and liquid samples
Electromagnetic drive with electronic control of amplitude and frequency
Storage of up to 20 sieving programs
Sample capacity: 20 g–3 kg
Technical Parameters
Model | WAS200 |
Application / Product Features | Powders, Granules, Small Lumps, Loose Materials, Pastes |
Maximum Load Capacity | 3kg |
Number of Sieve | 1–6 layers |
Amplitude | 0-3mm |
Particle Size | 20um-30mm |
Sieve Material | Stainless Steel |
Maximum Sieve Diameter | 200mm |
Primary Functions | Continuous Sieving / Batch (Intermittent) Sieving |
Additional Functions | Viewing Window, Sieve Clamping Plate, Water Circulation Piping System |
Sieving Method | Dry and Wet Sieving |
Voltage | 220V，50Hz |
Dimensions (W*D*H) | 500*460*730mm |
Weight | 48Kg |
IP | IP65 |
