Basic 100/200 UV-Visible Spectrophotometer for Education and Routine Laboratory Analysis

Product Details

The Welso Basic 100/200 Series UV-Visible Spectrophotometer is designed to meet the essential analytical needs of teaching laboratories, research institutions, environmental monitoring, and industrial quality control. With reliable optical stability and intuitive operation, it is ideal for daily routine tests and foundational scientific experiments.

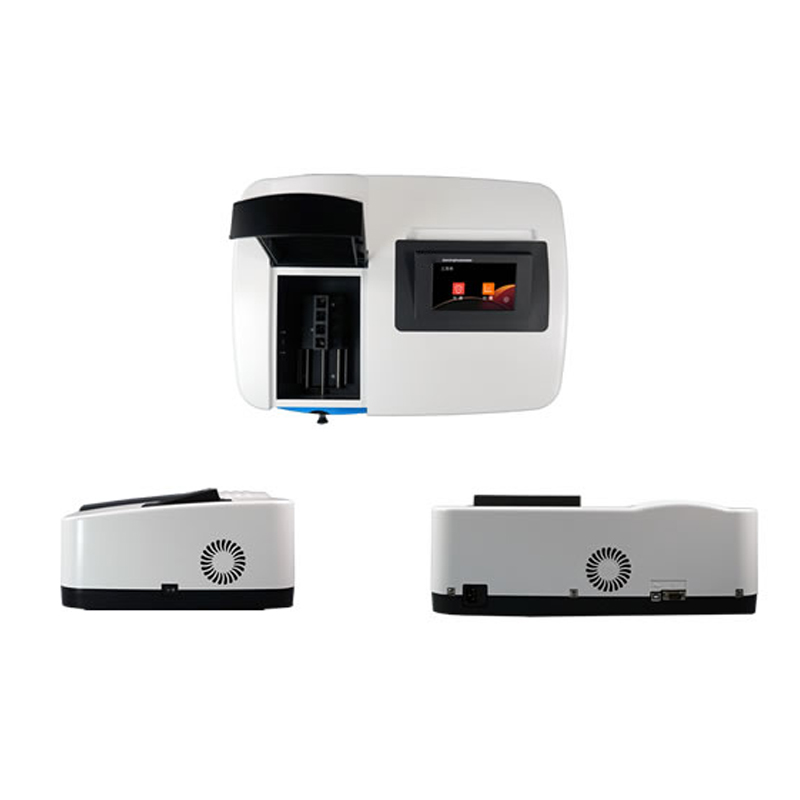

WSVT-WSUT100-200 (6)

Key Features

Reinforced Structural Base

The instrument adopts a thickened and reinforced base design to ensure stable optical alignment, reducing mechanical vibration and enhancing measurement repeatability.

Sealed Monochromator Design

The enclosed monochromator prevents dust and humidity from affecting the optical system, ensuring long-term reliability and prolonging instrument service life.

High-Stability Light Sources

Equipped with a long-life deuterium lamp and tungsten lamp (≥2000 hours lifespan), with a user-friendly plug-in lamp holder for quick replacement and reduced maintenance difficulty.

High-Resolution Optical System

The 1200 line/mm holographic grating and moisture-resistant optical mirrors provide high spectral resolution and precise absorbance measurement, improving test accuracy.

Measurement Capabilities

Supports photometric measurement, quantitative analysis, and standard curve creation, meeting the needs of routine laboratory testing and scientific research study.

Typical Applications

University and college chemistry & biology teaching labs

Pharmaceutical ingredient purity analysis

Water quality and environmental monitoring

Food and beverage production quality testing

Research lab sample absorbance and concentration measurement

Welso Basic Series — A stable and economical UV-Vis solution for daily laboratory workflows.

Technical Specifications

Specification	WSVT100	WSVT200	WSUT100	WSUT200
Optical System	1200 line/mm Grating, Single Beam
Wavelength Range	325–1100 nm	320–1100 nm	195–1100 nm	190–1100 nm
Spectral Bandwidth	4.0 nm	4.0 nm / 2.0 nm	4.0 nm	4.0 nm / 2.0 nm
Wavelength Accuracy	±1.5 nm	±0.8 nm	±1.5 nm	±0.8 nm
Wavelength Repeatability	≤0.2 nm
Photometric Accuracy	±0.004A (0–0.5Abs), ±0.008A (0.5–1.0Abs), ±0.5% T (0–100%T)
Photometric Repeatability	±0.002A (0–0.5Abs), ±0.004A (0.5–1.0Abs), ±0.2% T (0–100%T)
Stray Light	≤0.1 T @ 360 nm		≤0.1 T @ 360 nm; 220 nm
Stability	±0.002A / h @ 500 nm
Baseline Flatness	±0.004A
Noise	±0.001Abs
Display	480×272, 5-inch touch screen
Photometric Mode	T, A, C
Photometric Range	0–200% T, –0.301–3.0A, 0–9999.9C
Detector	Silicon Photodiode
Light Source	Deuterium Lamp, Tungsten Lamp
Input	Touch Screen
Interface	USB-B ×1
