Products
Water Bath

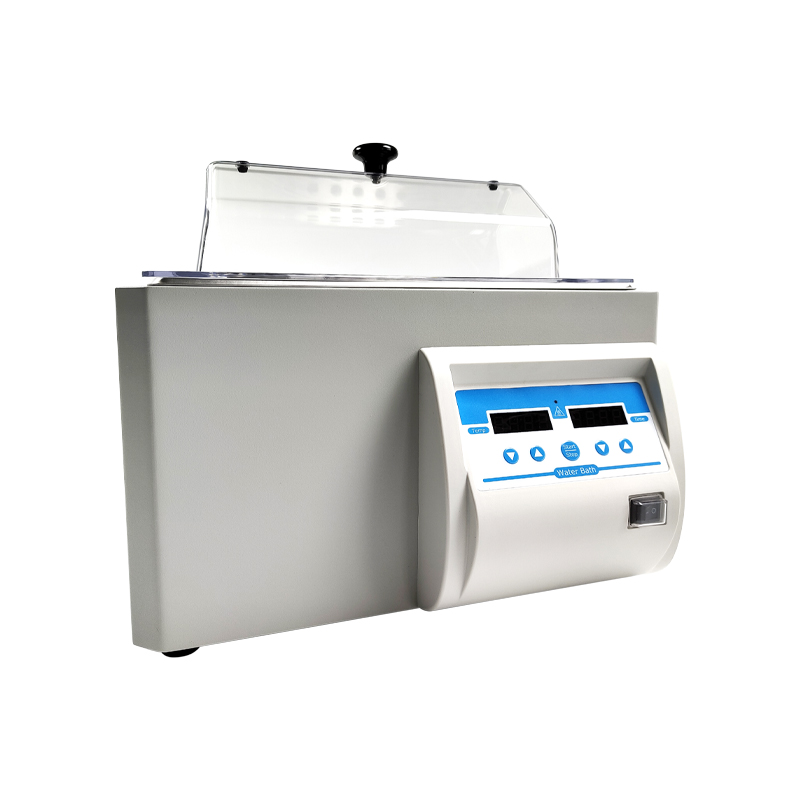

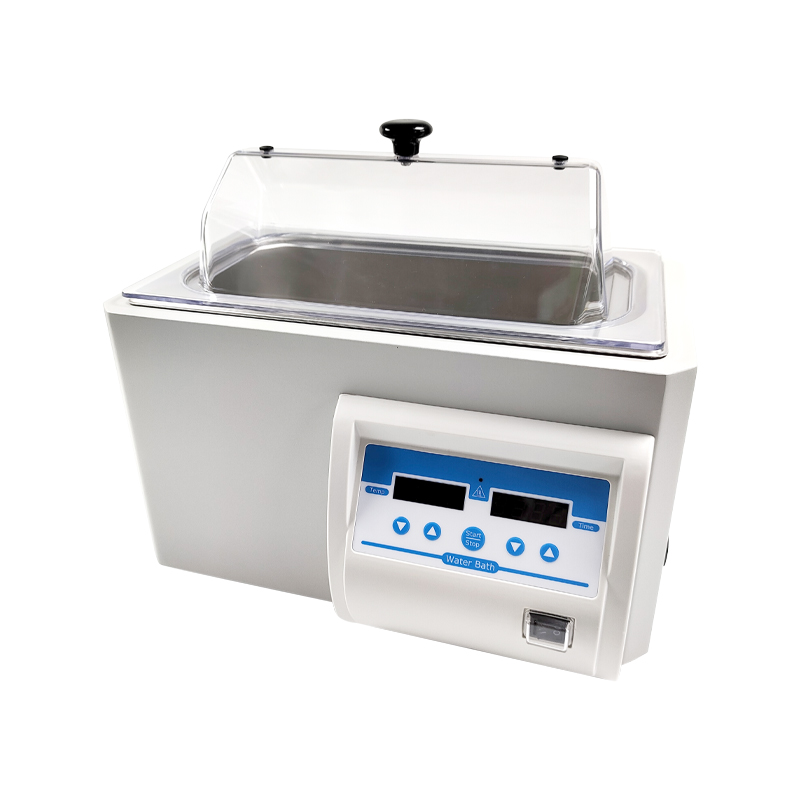

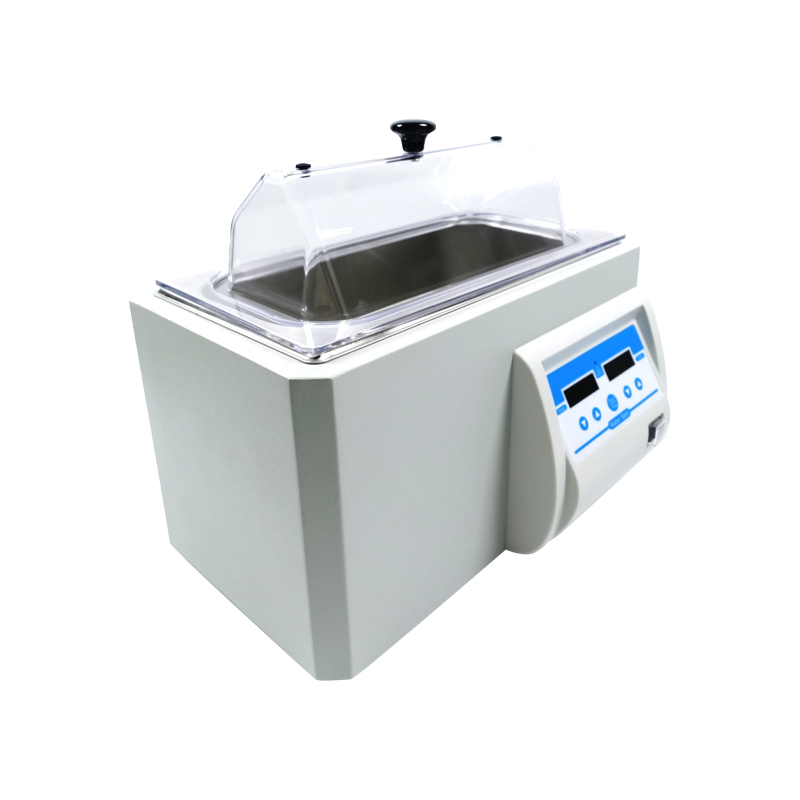

The Thermostat-Controlled Digital Water Bath combines structural durability with advanced safety mechanisms to support continuous laboratory operation. Its corrosion-resistant stainless steel tank features a precision-sealed design to prevent leakage, while the integrated aluminum heating plate distributes heat evenly across the bath.
Product Details
The Thermostat-Controlled Digital Water Bath combines structural durability with advanced safety mechanisms to support continuous laboratory operation. Its corrosion-resistant stainless steel tank features a precision-sealed design to prevent leakage, while the integrated aluminum heating plate distributes heat evenly across the bath.
Designed for long-duration experiments, the unit’s gabled lid efficiently diverts condensation away from samples and significantly reduces water loss from evaporation. With dry-burn prevention through its conduction heating design and integrated over-temperature cut-off, this water bath prioritizes operational safety and sample integrity.
Engineering Highlights:
Leak-Proof Tank Structure with high-quality stainless steel interior.
Conduction Heating via Aluminum Plate: Avoids water drying out and dry burning risks.
Double-Safety Mechanism: Built-in water-safe conduction + overheat protection.
Anti-Condensation Lid Geometry keeps samples dry and heating process stable.
Easy Wastewater Management: Drain outlet located at tank side.
Thermal Insulation Shell: Protects users and maintains energy efficiency.
Parameters:
Project | WTB5L-1 |
Temp. setting range | 0°C~100°C |
Temp. control range | RT.+5°C~100°C |
Timing range | 1min~99h59min/∞ |
Temp. accuracy | ≤±0.3°C @37°C |
Display accuracy | 0.1°C |
Temp. uniformity | ≤±0.3°C @37°C |
Heating time | ≤ 30min(25°C~100°C) |
Tank capacity | 5L |
Heating method | Aluminum plate heat conduction |
Working area | 263*120*115mm |
Power | 900W |
Voltage | AC220V or 110V/50-60Hz |
Fuse | 250V 3A Ф5*20 |
Dimension (mm) | 355*270*306mm |
Weight (kg) | 5.1kg |
