WHH600 Hand-held Compact Homogeniser / Disperser / Emulsifier
This device integrates homogenising, dispersing, and emulsifying functions in one compact and easy-to-operate unit. It draws materials between the stator and rotor through a high-speed rotating cutter head, efficiently achieving shearing and dispersing processes. With a maximum speed of up to 35,000 rpm, it enables rapid and effective homogenisation.
Product Details

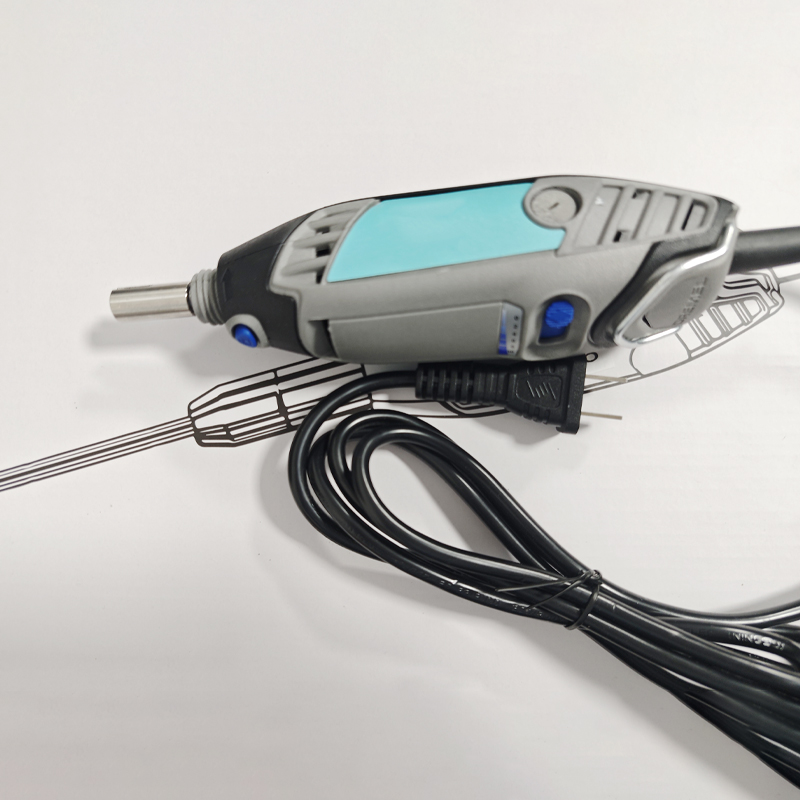

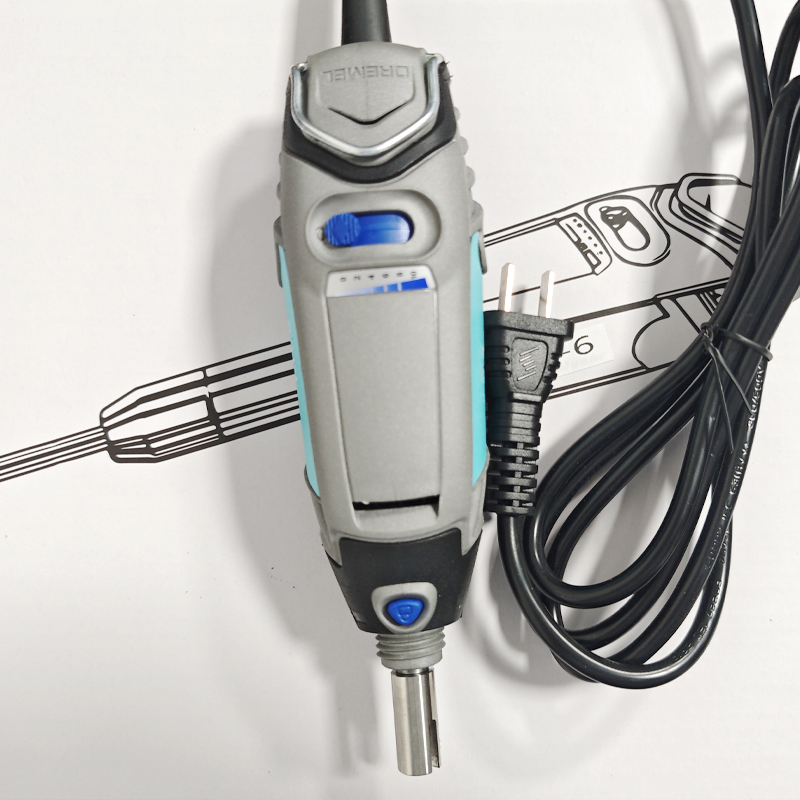

WHH600 Hand-held Compact Homogeniser / Disperser / Emulsifier
This device integrates homogenising, dispersing, and emulsifying functions in one compact and easy-to-operate unit. It draws materials between the stator and rotor through a high-speed rotating cutter head, efficiently achieving shearing and dispersing processes. With a maximum speed of up to 35,000 rpm, it enables rapid and effective homogenisation.
Widely used in biopharmaceuticals, genetic research, tissue grinding, cell suspension, pathological analysis, oil-water emulsification, dispersion of nanomaterials, homogenisation of dairy products, polymerisation reactions, daily chemical products, inks and coatings, fine chemicals, pesticide development, geological exploration, environmental protection, and energy industries.
Product Features
Compact and Portable, One-Hand Operation
Small in size and lightweight, ideal for one-handed operation. Easy to handle in both laboratory and field settings.
Quick-Release Blade Head, Easy to Clean
The cutter head can be easily attached or removed without tools, making cleaning convenient and reducing the risk of cross-contamination.
High-Quality Blade, Corrosion and Heat Resistant
Made of premium stainless steel, the blade is resistant to acids, alkalis, corrosion, and high temperatures—suitable for handling a variety of complex samples.
Ultra-High Speed, Efficient Homogenisation
With a maximum speed of up to 35,000 rpm, the device enables rapid and uniform dispersion and shearing, significantly improving work efficiency.
Imported Motor, Safe and Reliable
Equipped with an original imported motor, the homogeniser delivers strong power, stable performance, and high operational safety even under continuous use.
Technical Specification
Model | WHH600 |
Voltage | 220V |
Frequency | 50Hz |
Power | 120W |
Processing Volume | 0.2-250mL |
Processing Viscosity | 5000mpas |
Process Type | Micro Batch Processing |
Speed Range | 1000-35000rpm |
Speed Control Mode | 0-6 speed adjustment |
Gear Speed Rpm | 1000,3000,8000,15000,23000,35000 |
Standard Cutter Head | 10G |

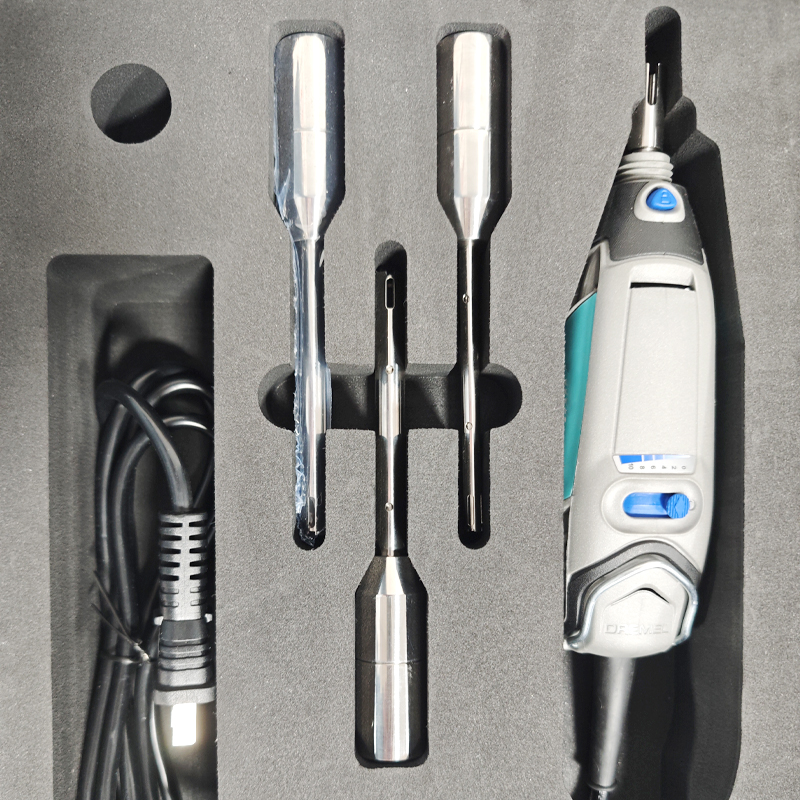

Optional Cutter Head | 6G/8G/10G |
Material Of Cutter Head | 316L stainless steel |
Shaft Sleeve Material | PTFE |
Adaptive Bracket | H-pillar bracket (optional) |

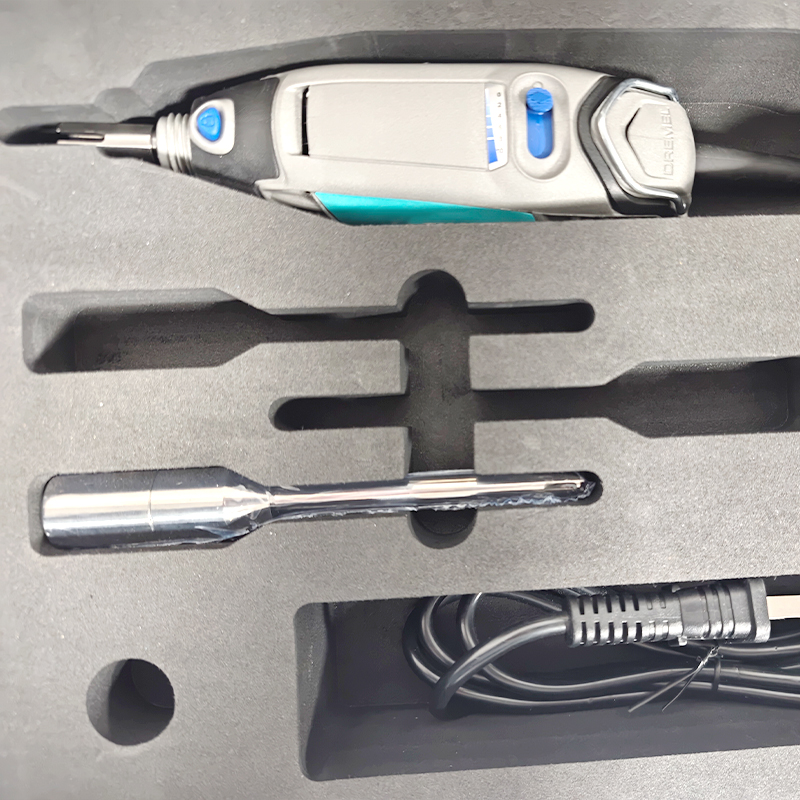

Packaging Configuration | Carton Packing |
Packaging Size | 260*330*70mm |
Net Weight Of Main Instrument | 0 .5kg |
Gross Weight Of Main Instrument | 7kg |
Gross Weight | 10kg |

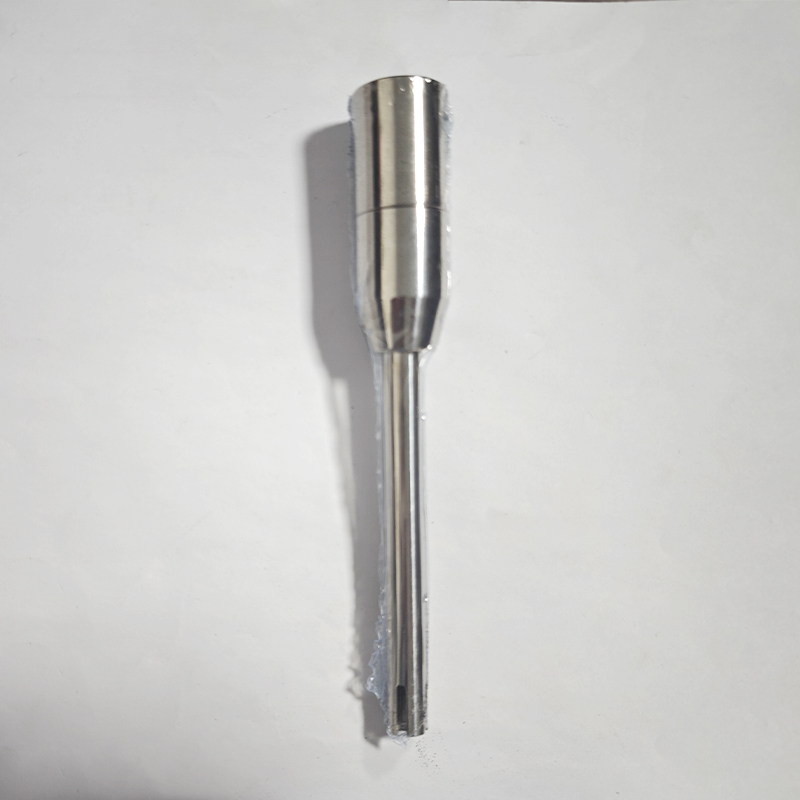

Cutter Head Parameters
Model | 6G |
Stator Diameter | 6mm |
Treatment Volume | 0.2-50mL |
Treatment Viscosity | 100cP |
Model | 8G |
Stator diameter | 8mm |
Processing volume | 10-100mL |
Treatment viscosity | 500cP |
Model | 10G |
Stator Diameter | 10mm |
Treatment Volume | 10-250mL |
Treatment Viscosity | 5000cP |
