Homogenizer
The WHSH500 High Speed Homogenizer features a precision-engineered stator and rotor system. During operation, the rotor rotates at high speed to create relative motion with the stator while maintaining a stable, narrow gap between them.
Product Details
The WHSH500 High Speed Homogenizer features a precision-engineered stator and rotor system. During operation, the rotor rotates at high speed to create relative motion with the stator while maintaining a stable, narrow gap between them. This design generates high-frequency shearing within the shear chamber, ensuring efficient, uniform processing of materials. The equipment is ideal for dispersing, emulsifying, shearing, homogenizing, and other fine mixing tasks.
With its robust performance, the WHSH500 is well-suited for research and development in industries such as cosmetics, personal care, coatings, pulp processing, emulsified asphalt, and water treatment.
Features:
LCD Display: Clear and intuitive display for easy monitoring of operating parameters.
High-Speed Operation: Adjustable speed up to 28,000 rpm, easily controlled via front-panel knob.
Stepless Speed Control: Enables precise speed adjustment to meet various processing needs.
Corrosion-Resistant Shaft Sleeve: Ensures long-term durability and chemical resistance.
High Temperature Tolerance: Supports operation at temperatures up to 120°C.
Overload Protection: Automatic shutoff function prevents damage from overloading.
Premium Cutting Head: Made of high-quality stainless steel for excellent corrosion and chemical resistance.
Integrated Illumination: Built-in lighting allows clear observation of samples during operation.
Technical Specification
Model | WHSH500 |
Power Supply | AC 220V 50/60HZ |
Output Power | 500W |
Speed Range | 2000-28000r/min |
RPM Display | LCD Display |
Speed Control | Continuously Variable Transmission (CVT) |
Timing Control | 6000min |
Noise | ≤65dB |
Torque Display | Yes |
Material Of Contact Material | SS304 |
Material Of Shaft Sleeve | PTFE |
Standard Working Head Type | Shear Tooth |
Maximum Working Temperature | 120℃ |
Standard Working Head Quantity | 1 |
Allowable Ambient Temperature | 5-40℃ |
Allowable Relative Humidity | 80% |
Process Type | Batch Processing |
Related Accessories | Work Support, Base |
Weight | About 9kg |

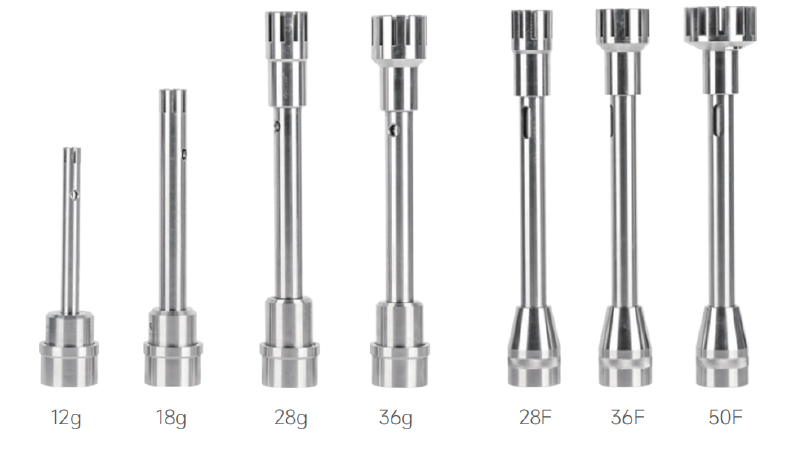

Cutter Head Parameters
Working Head Model | 12G | 18G | 28G | 36G | 28G | 36G | 50G |
Material | Stainless Steel | ||||||
Connection Method | Snap | Snap | Snap | Snap | Helical | Helical | Helical |
Range Of Processing Capacity (H2O) | 5-800mL | 50-2000mL | 80-3000mL | 100-7000mL | 80-3000mL | Helical | 150-10000mL |
Applicable Viscosity | 500cP | 2500cP | 5000cP | 6000cP | 5000cP | 100-7000mL | 9000cP |
Height Of Immersion | 50mm | 60mm | 90mm | 90mm | 90mm | 6000cP | 100mm |
