Products
Homogenizer

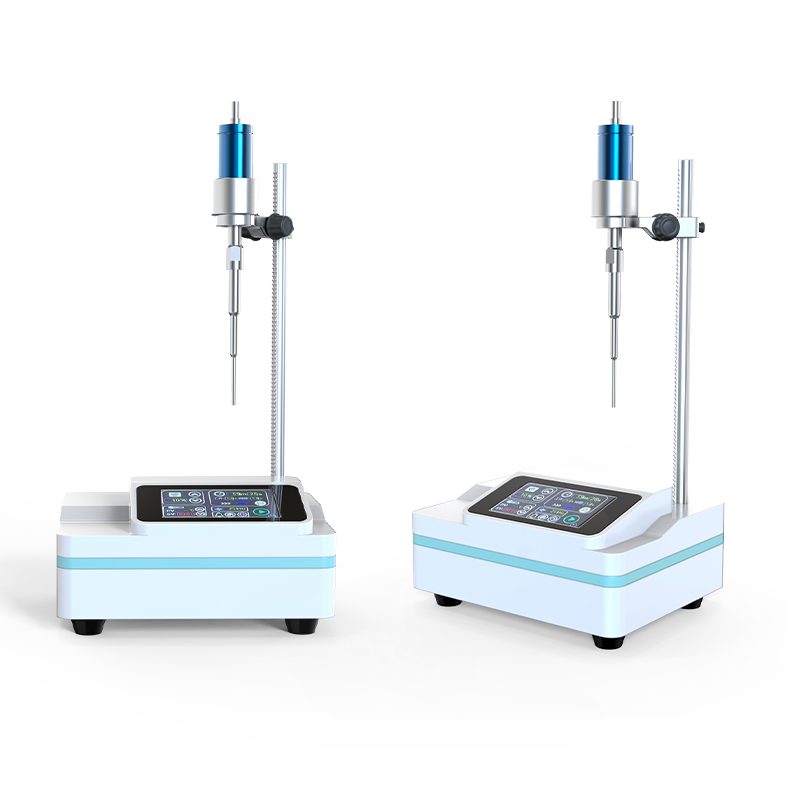

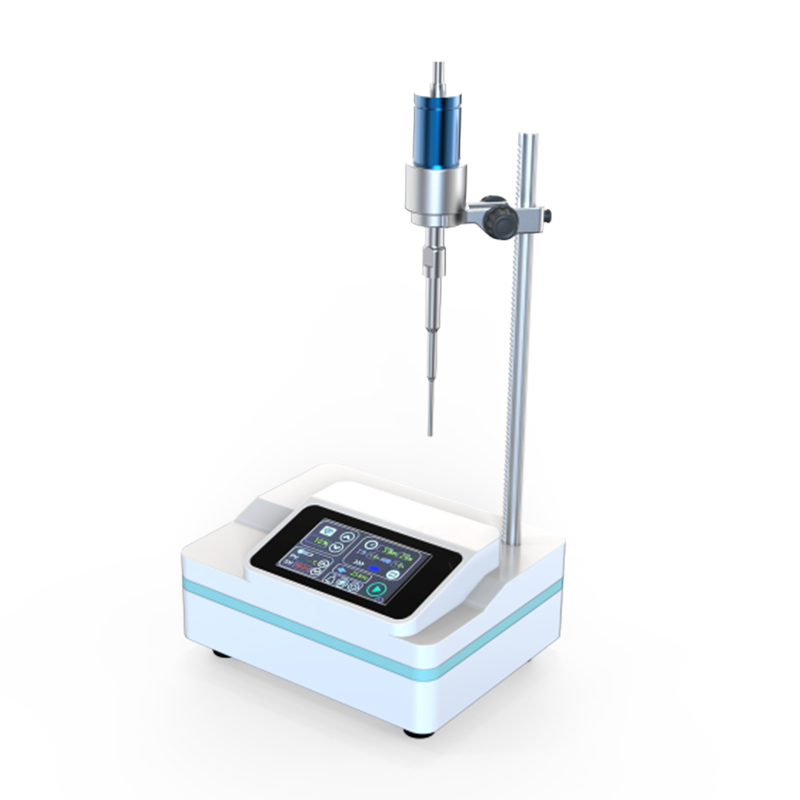

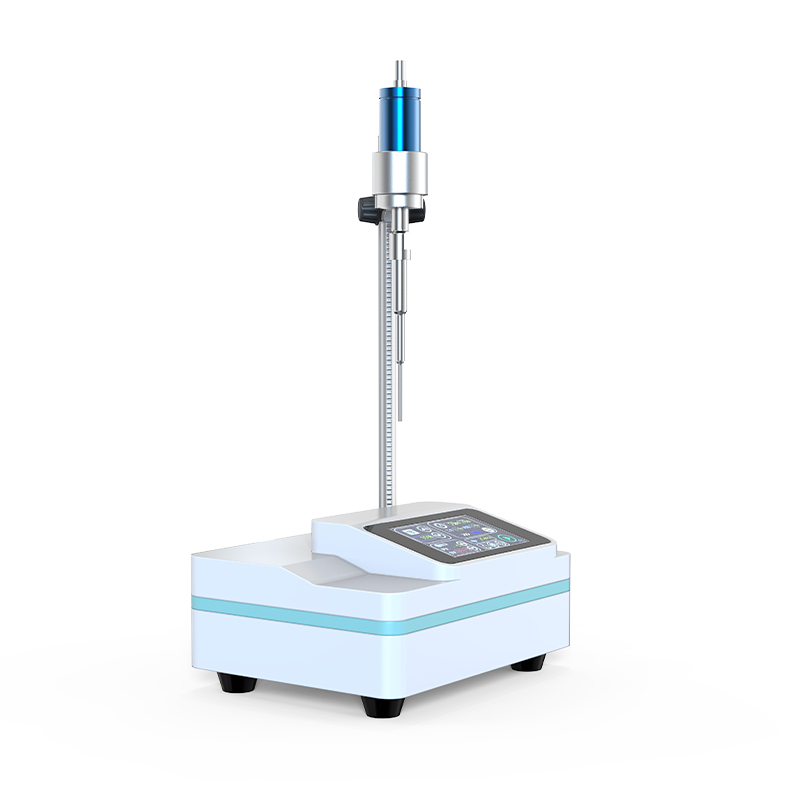

The handheld ultrasonic cell disruptor is a multifunctional and versatile instrument that uses strong ultrasonic to generate cavitation effects in liquids for ultrasonic processing of materials. It is widely used in fields such as biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physics, and zoology.
Product Details
The handheld ultrasonic cell disruptor is a multifunctional and versatile instrument that uses strong ultrasonic to generate cavitation effects in liquids for ultrasonic processing of materials. It is widely used in fields such as biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physics, and zoology.
Applications
Drug extraction, cells, bacteria, and viral tissue fragmentation. For example, the extraction of intracellular contents.
Accelerate dissolution, accelerate chemical reactions. For chemical synthesis, this ultrasonic device comes with an acoustic enclosure and low temperature system.
Dispersion, uniformity, and emulsification of particles, such as the dispersion of nanomaterials.
Ultrasonic fragmentation is an application of sonochemistry equipment, which can be used for plant extraction, water treatment, solid-liquid dispersion, disaggregation of particles in liquids, and promoting solid-liquid reactions, among other effects, to disperse larger aggregates into smaller particles. Stabilization refers to ensuring that powder particles maintain long-term uniform dispersion in liquids.
Features
Handheld with short spin mode which is easy to carry. With 2 working modes to choose.
Two types of modes available: continuous and short. The ultrasonic transducer uses a lead zirconate titanate crystal piezoelectric transducer, sealed to isolate moisture and corrosive gases.
Automatic recognition for ultrasonic probe, allowing for the replacement of titanium alloy probe of different sizes without manual adjustment.
Diameter: 44mm, easy to handle.
Aluminum alloy sliding rails for lifting, easy to operate with precise height.
Probe made of TC4 tanium alloy, which is autoclavable.
360° rotation easy for experiment.
7 inches touch screen with all parameters displayed.
Digital integrated circuit can no load/continuous ultrasound.
New design with compact size which saves benchtop space.
The unique automatic amplitude and pulse compensation function maintains frequency stability, ensuring that the probe amplitude does not change due to variations in load during the ultrasonic process.
Direct homogenization of samples in Elisa plates and vials. Equipped with extra battery for continuous 4 hours running.
Parameters
Model | WUPS250 | WUPS400 |
Display and Operation | 4.3 Inches Touchsreen | 4.3 Inches Touchsreen |
Capacity | 0.1-200mL (different probe) | 0.1-300mL (different probe) |
Working Frequency | 25KHz | 25KHz |
Uitrasonic Power | 250W | 400W |
Power Range | 0-100% | 0-100% |
Size | 250×200×120mm | 250×200×120mm |
Timing | 0.1s-9999min adjustable | 0.1s-9999min adjustbale |
Mode | Short and continuous | Short and continuous |
Handle Size | Diameter 44mm | Diameter 44mm |
Probe | Standarrd 2mm, Optional 3mm、6mm | Standard 3mm,：Optional 2mm、6mm、8mm |
Accessories | Main Instrument Ultrasonic transducer Jack Stand 4. User's manual | Main Instrument 1 unit Ultrasonic transducer Jack Stand 4. User's manual |
