Homogenizer

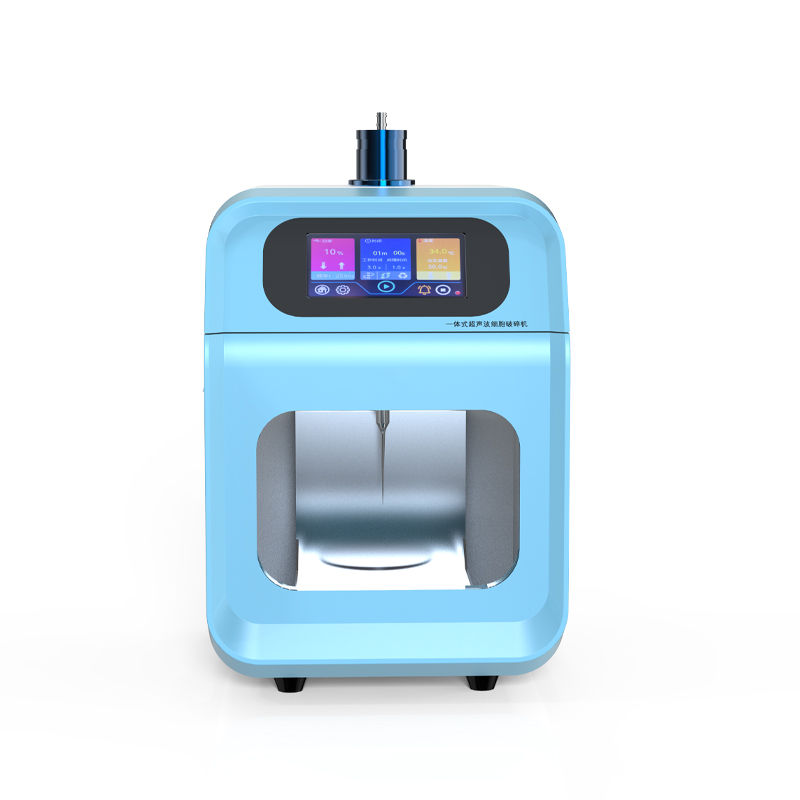

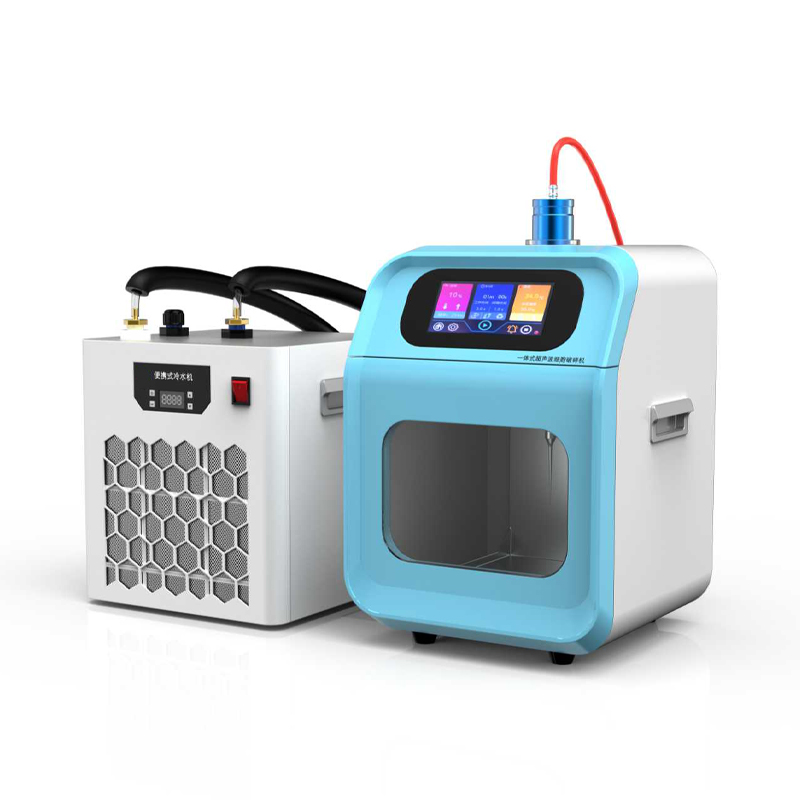

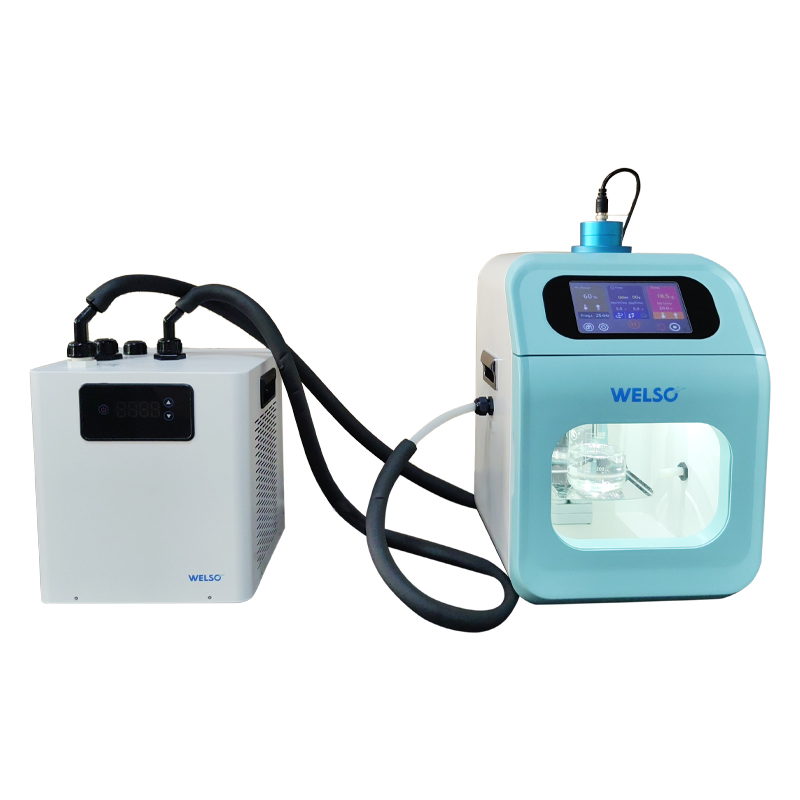

Welso ultrasonic homogenizer consists of a low-temperature ultrasonic main unit, a portable low-temperature chiller, and 100mL beaker. Our WUHC series integrated ultrasonic homogenizer (sonicator) can be used for wide variety of applications including cell disruption, DNA shearing, particle dispersion, emulsification and chemical reactions acceleration.
Product Details
Welso ultrasonic homogenizer consists of a low-temperature ultrasonic main unit, a portable low-temperature chiller, and 100mL beaker. Our WUHC series integrated ultrasonic homogenizer (sonicator) can be used for wide variety of applications including cell disruption, DNA shearing, particle dispersion, emulsification and chemical reactions acceleration. WUHC series ultrasonic homogenizer has a maximum power output of 1500 watts which can proceed large volume of samples. The sound enclosure with acoustical foam as inside layer reduces noise and avoids direct contact with solution.
Features
• Integrated design with small footprint saves bench space.
• Variable power up to 1500W allows process of large sample volume.
• 7 Inch TFT touch screen with all parameters displayed.
• Different horns available.
• Sample volume from 0.1μL to maximum 3000mL.
• TC4 high quality titanium alloy probe with high strength, corrosion resistance and heat resistance.
• Outlook: ABS injection shell with all parts integrated.
• Digital integrated circuits which allows ultrasonic without samples and continuous ultrasonic.
• Optional automated platform with UV sterilization and light.
• 7 Inches TFT touch screen with user-friendly operation panel.
• Intelligent sound enclosure with PVC injection outside ensures lower noise.
• Small Probe with IBDI chip transducers ensures high efficient ultrasonic and less heating.
Application
Biochemistry, Microbiology, Medicinal Chemistry, Surface Chemistry, Zoology etc.
Specifications
Model | WUHC650 | WUHC900 | WUHC1000 | WUHC1200 | WUHC1500 |
Output Power | 65-650W | 90-900W | 100-1000W | 120-1200W | 150-1500W |
Frequency | 20-35Khz （automatic) | ||||
Sample Volume | 0.1-500mL | 0.1-800mL | 0.1-900mL | 1-1500mL | 1-2500mL |
Timing | 0-9999 minutes | ||||
Ultrasonic Time | 0.1-99.9s adjustable (on/off) | ||||
Temperature Control | 0℃-100℃ | ||||
Alarming | Default,Temperature, Power, Time | ||||
Interfaces | 7 Inches TFT touch screen | ||||
Display | Frequency, Temperature,Power and Time | ||||
Protection | Over-loading, Over-Temperature,Self-Diagnosis | ||||
Platform | 304SS Electric lifting platform | ||||
Horn | Φ2,Φ3,Φ6,Φ8,Φ10,Φ13 | Φ2,Φ3,Φ6,Φ8,Φ10,Φ13,Φ15 | Φ2,Φ3,Φ6,Φ8,Φ10,Φ13,Φ15,Φ20,Φ22 | ||
Platform Size | 310*340*510mm | ||||
Voltage | 220V,50Hz/110V,60Hz | ||||
