Incubator Shaker

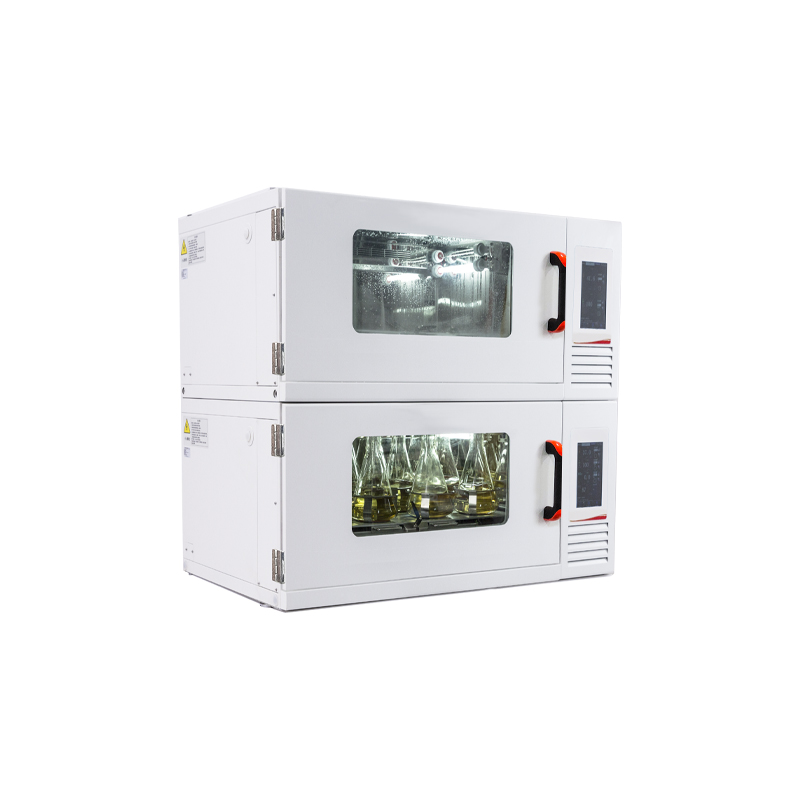

The WIS1900 stackable incubator shaker is designed for the cultivation and production of cells, microorganisms and biological products, providing a precisely controllable culture environment. The equipment integrates high-precision temperature control, humidity control and efficient shaking functions, significantly improving the efficiency of material exchange and gas dissolution in the culture medium, ensuring that the culture grows and reproduces stably under optimal conditions.
Product Details
The WIS1900 stackable incubator shaker is designed for the cultivation and production of cells, microorganisms and biological products, providing a precisely controllable culture environment. The equipment integrates high-precision temperature control, humidity control and efficient shaking functions, significantly improving the efficiency of material exchange and gas dissolution in the culture medium, ensuring that the culture grows and reproduces stably under optimal conditions.
Welso incubator shaker is closely aligned with the experimental needs of modern life science research. It adopts an advanced embedded microprocessor system and has powerful data processing capabilities to ensure high stability and excellent anti-interference performance of the equipment. It can achieve precise control of core parameters such as temperature and speed to meet the stringent requirements of various experimental environments. The whole machine has excellent craftsmanship, an appearance design that combines ergonomics and modern aesthetics, and is equipped with a user-friendly operating interface. It is easy to use and is an ideal choice for all types of biological laboratories.
Features
Stable and durable structural design
● Equipped with a three-axis balancing system to ensure long-term stable operation of the equipment and extend its service life
● Supports up to three layers of stacking to save experimental space, and single-layer/double-layer models can be equipped with a dedicated bracket
Intelligent control, clear information at a glance
● 7-inch high-definition LCD touch screen, real-time synchronous display of all operating parameters, intuitive and convenient operation
● Program control mode supports up to 12 temperature and speed settings to meet diverse experimental needs
Efficient and energy-saving refrigeration system
● Adopts a high-efficiency variable frequency compressor refrigeration system, which is fast and stable, taking into account energy saving and performance
Convenient and user-friendly design
● Side-opening structure for easy operation and sample replacement

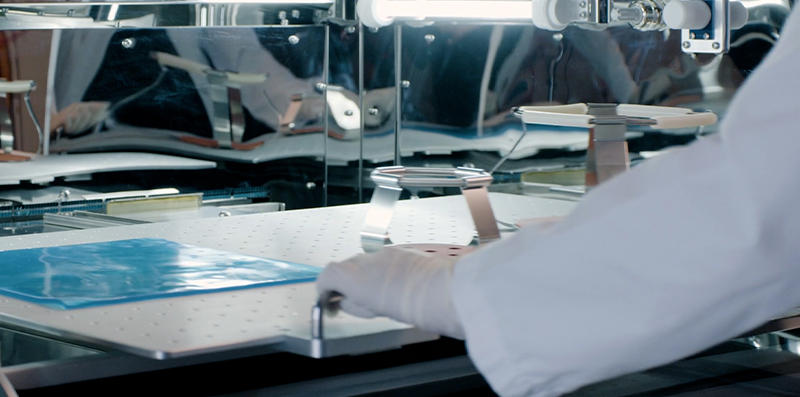

● Pull-out tray design for easy sample placement and internal cleaning and maintenance of the equipment
Strict standards, data traceability
● Comply with GMP specifications
● Support FDA 21 CFR Part 11 standards to meet the recording and traceability requirements of key data
Safe protection, worry-free operation
● Equipped with a two-way ultraviolet sterilization system to keep the cavity clean and sterile
● Optional WiFi remote monitoring system to achieve remote real-time control and status management to improve safety
Technical Specifications
Model | WIS1900 | WIS1905 |
Product Name | stackable Incubator Shaker, touch screen | |
Shaking | ||
Orbit Diameter | 26mm | 50mm |
Speed | 0 (stop), 30 - 300 rpm | |
Speed Accuracy | ±1rpm | |
Temperature | ||
Temp.Range | Room Temp.Minus 18℃-60℃(lowest Temp. is 4 ℃) | |
Temp.Accuracy | 0.1℃ | |
Temp.Uniformity | ±0.3℃(@37℃) | |
Heating Power | ≤450w | |
Cooling Power | 70~230w | |
Recover Time After Open Door 30s on Temp. | ≤6min(@37℃) | |
Humidity | ||
Humidity Type | NA | |
Max.Humidity | NA | |
General | ||
Platform Dimensions | 550x470mm | |
Capacity | 190L | |
Max.load | 10KG | |
Programmable Segments | 12 Sections | |
illumination | Both of Side Lamps | |
Disinfection | Both of Side UV Lamps | |
Door Open Direction | Leftward | |
Protect Set Parameters | Passwords Protect | |
Data Curve Display | Temp Curve, Speed Curve | |
Display | 7" Color Capacitance Touch Screen | |
Timer | 0-999h59min | |
USB Export Data | Yes | |
Data Display on Interface | in 7 Days | |
Operating Data Storage Cycle | More than 912 days | |
Data Storage Interval | 1 min | |
Data Stored | Time, Temp, Speed, Status | |
Auto-Defrost | Yes | |
Auto Screen Off | Yes | |
Auto Screen Lock | Yes | |
Third Platform Height | 1315mm | |
Plateform with Rails | Yes | |
Noise Level | ≤55dB(When compressor is running) | |
Water resistant | Yes | |
Auto-run after Power Recovery | Yes | |
Drive Type | Motor | |
Auto-run after Power Recovery | ||
Power | ≤730w | |
Power Supply | AC 220V±22V, 50Hz/60Hz | |
RH | Optional(10% above ambient humidity, up to 90%) | |
Mobile Monitor and by WIFI | Optional | |
PC monitor and by RS485 | Optional | |
Window cover | Optional | |
Net Weight | 170kg | |
Internal Working Height | 305mm | |
External Dimensions | 970*780*(530+80 feet high)mm |
FAQ
Q:How to monitor and control the incubator shaker?
Q:Are all models of incubator shakers stackable?
Q:Are the clamps, Mats and tray standard configurations of the incubator shaker?
Q:Is Welso Incubator shaker for cells or bacteria culture?
Q:What are the orbits of incubator shaker?
