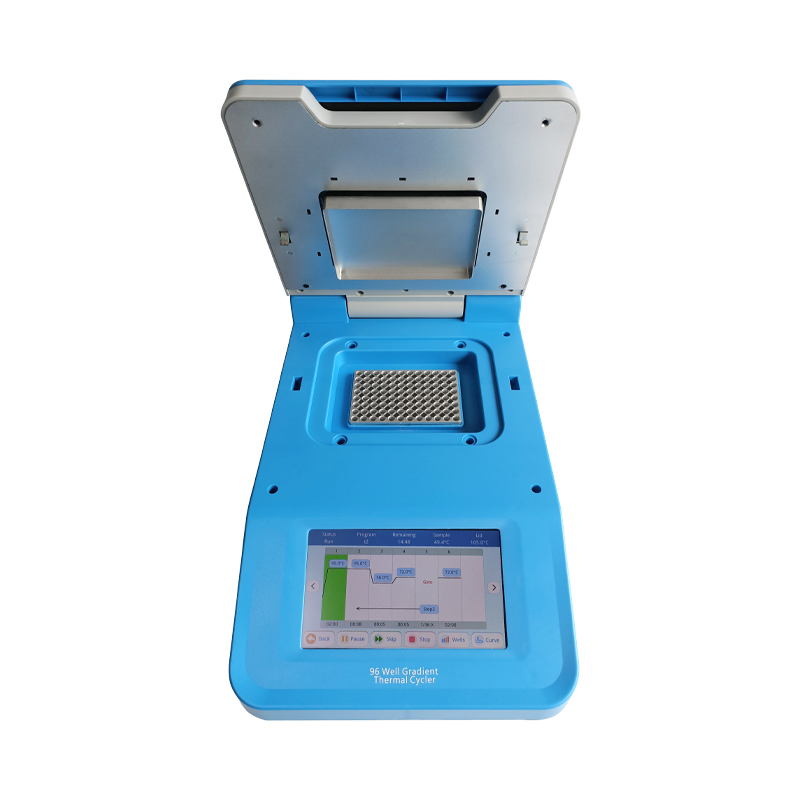

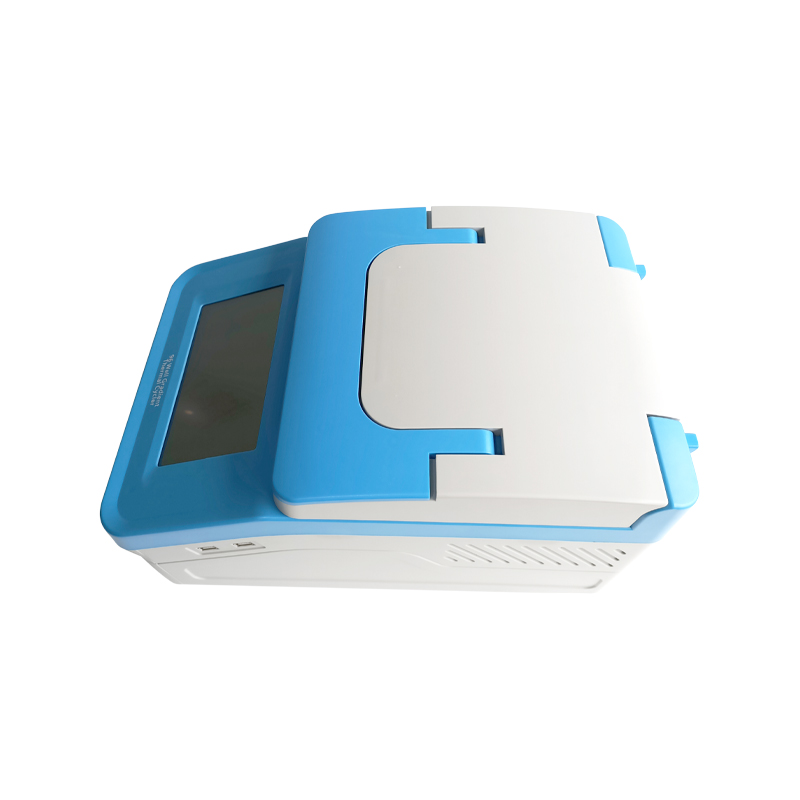

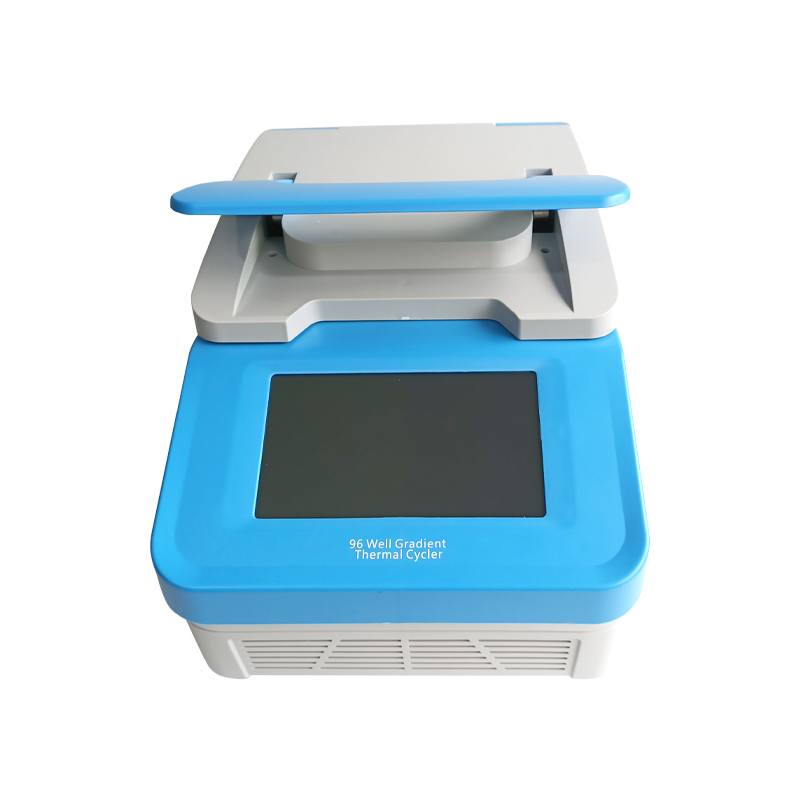

The WGT9600 Gradient Thermal Cycler is the smart choice for researchers and technicians seeking fast, reliable, and versatile PCR amplification. It combines powerful temperature control, gradient PCR capability, and an intuitive touchscreen interface—designed for labs in molecular diagnostics, food testing, medical analysis, and more.
Product Details
The WGT9600 Gradient Thermal Cycler is the smart choice for researchers and technicians seeking fast, reliable, and versatile PCR amplification. It combines powerful temperature control, gradient PCR capability, and an intuitive touchscreen interface—designed for labs in molecular diagnostics, food testing, medical analysis, and more.
Fast & Accurate Thermal Cycling
Reaches 5°C/s heating/cooling rate, saving valuable time without compromising accuracy.
Powered by semiconductor peltier modules for stable and consistent temperature control.
Powerful Gradient Functionality
Perform gradient PCR across 12 different temperatures in one run—great for primer optimization and protocol development.
Smart Interface & Easy Operation

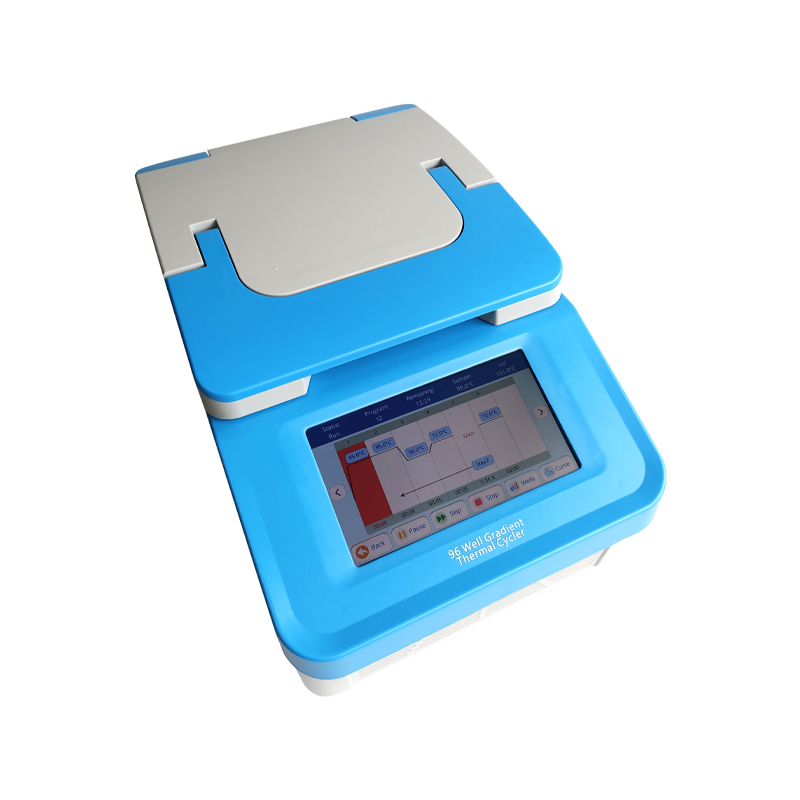

Bright 7” color touchscreen for clear control and navigation.
Built-in templates and one-click incubation make running common procedures like denaturation and enzyme digestion easier than ever.
Adaptable & Reliable
Auto-adjusting heated lid fits test tubes of varying heights and helps prevent evaporation.
USB support for exporting results and updating software.
Auto-restart feature ensures your run resumes even after a power outage.
Bring efficiency, accuracy, and convenience to your PCR workflow with the WGT9600—your reliable gradient PCR solution.
Parameters
Capacity | 96*0.2mL (0.2mL PCR tubes, 8-tube strips) |
Temp. Setting Range | 0°C ~105°C |
Temp. Control Range | RT.-25°C ~105°C |
Heated Lid Temp. Setting Range | 30°C ~112°C |
Heated Lid Temp. Control Range | RT+5°C ~112°C |
Temp. Uniformity | ≤±0.2°C |
Temp. Accuracy | ≤±0.2°C |
Max. Heating Rate | 5°C /sec |
Max. Cooling Rate | 4°C /sec |
Temp. Display Resolution | 0.1°C |
Temp. Control Method | Block/Tube |
Display | 7-inch color touch screen, 800*480 Pixel |
Communication Interface | USB*2 |
Tm Calculation | Automated |
Program Memory | 10000+ |
Time Increment/Decrement | -999~999s |
Temp. Increment/Decrement | -10~10°C |
Gradient Temp. Range | 30~105°C |
Gradient Setting Range | 0.1~30°C |
Gradient Temp. Uniformity | ≤±0.2°C |
Gradient Temp. Accuracy | ≤±0.2°C |
Temp. Change Rate | 0.1~4°C /s |
Single Step Time Range | 0~9h59min59s/∞ |
Program Max. Cycle Numbers | 200 |
Max. Steps Of The Program | 30 |
Program Pause Function | Yes |
16C Insulation | Forever |
Auto Data Protection | Yes |
On-Screen Report | Yes |
Power | 800W |
Voltage | AC100~240V, 50-60Hz |
Fuse | 250V 10A Ф5*20 |
Dimension(Mm) | 420*260*245 |
Weight(Kg) | 11 |
