Current Location:Home > Products > Plate Sealer

Plate Sealer

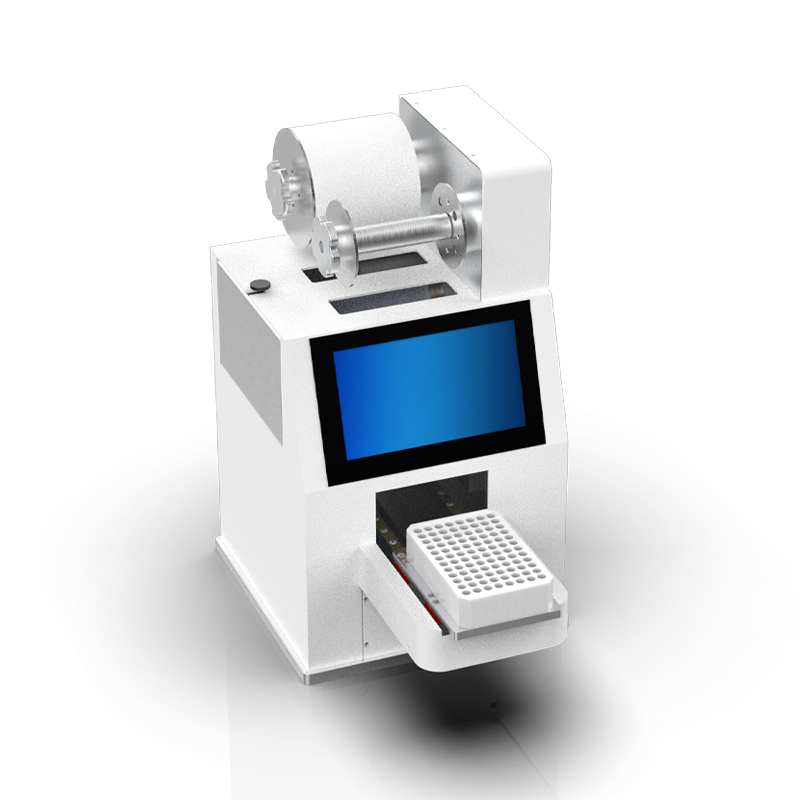

WBC001 Fully Automatic Plate Sealer - Efficient Sealing, Intelligent Automation Of Experimental Processes

Designed for seamless integration with robotic systems, the Welso fully automatic plate sealer can achieve fast, efficient and uniform sealing effects covering the entire microplate

Product Details

Designed for seamless integration with robotic systems, the Welso fully automatic plate sealer can achieve fast, efficient and uniform sealing effects covering the entire microplate.

The device is compatible with a variety of sealing films and sealing foils, especially suitable for PCR plates of various specifications, and is widely used in life sciences, molecular biology, medical testing and high-throughput screening.

Its advanced touch operation interface, multiple communication interfaces and compact design make it easy to use independently or integrate into various automated processes to improve laboratory work efficiency and consistency.

automatic plate sealer

Product Features

Efficient and fast sealing performance

Supports all kinds of sealing films and sealing foils to achieve fast and stable sealing, significantly improving experimental throughput.

Flexible application mode

Can be operated as a stand-alone device, or seamlessly integrated into an automated or robotic workstation, suitable for a variety of experimental scenarios.

Convenient human-computer interaction design

Equipped with an intuitive and friendly touch screen interface, it simplifies the operation process and sets temperature and time parameters easily and quickly.

Stable and uniform sealing effect

Ensures sealing consistency and airtightness, avoids sample evaporation, contamination and cross-reaction problems, and ensures reliable experimental data.

Quickly replace adapters and support customization

The adapters are easy to replace and can be customized according to different microplate sizes and experimental requirements, and can flexibly respond to diverse applications.

Compact design saves experimental space

It takes up little space and can be flexibly arranged in the laboratory or automated system to optimize the overall workflow.

Quick start, reduce waiting time

The device starts quickly, with almost no warm-up time, which greatly shortens the experimental preparation cycle and improves experimental efficiency.

One-click sealing, compatible with a variety of PCR plates

Supports one-click sealing operations for most standard 96-well plates, improving the convenience and consistency of experimental operations.

Multiple communication interfaces for easy system integration

Supports USB, RS232, RS485 and TTL control modes, convenient for docking with various automation platforms or data systems to achieve remote control and data interconnection.

Parameters

Model

WBC001

Sealing Temperature Range

Ambient to 199°C

Film Quantity

200 pcs/Roll

Plates

96 well PCR Plates(non-skirted, semi-skirted, full skirted), Elisa Plate, Deep Well Plate

Operation Panel

7 Inches Touch Screen

Sealing Time

8 seconds

Connection

USB or R232、R485 port, can also be controlled through TTL

Power Consumption

200W

Size

240*405*412mm(L*W*H)

Net Weight

18.5kg


FAQ

Q:How long it takes to seal a film?

A:It depends on semi-auto or auto.Usually it takes around 3 to 15 seconds.

Q:What factors will affect sealing performance?

A:Correct temperature, time and pressure will affect sealing performance.

Q:Does Welso plate sealer use piece film or roller film?

A:Our semi-auto plate sealser use piece film while our auto plate sealer use roller film.

Q:What kind of films can be used for sealing?

A:We can seal pressure sensitive film, adhesive film and sealing foils.

Q:What kind of plate can be used in plate sealer?

A:Usually PCR plate, deep well plate, elisa plate and cell culture plate can be used in plate sealer.
